Cubebits Downlight & Cubebits Wall Wash

3 Cell
3 Cell

Specifiers and designers looking to make a bold, look-at-me statement with design and performance now have the recessed linear downlights form they have been looking for.

The solution: Cubebits.

The fixture’s 1.5" wide profile is available in 3-cell, 6-cell, 9-cell and 12-cell units and is compatible with grid and flange ceilings for up to 1 1/2" ceiling thickness. The downlight comes standard with dimming capability with spot, flood and wide flood beam distribution options. The black and white specular finished bezel allows for quiet, comfortable yet required light output.

Easy installation and comfortable light output come together without compromising superior control or performance.

Complimentary Wall Wash in 3-cell and 6-cell units available. Designed with back side shield for room side comfort.

Features & Benefits

Wattage

2.6 W/Cell max

Lumen Output

2,208 max

Color Temp (CCT)

2700K , 3000K , 3500K , 4000K

Color Rendering Index (CRI)

90+

Technology

Fixture Modification Request (EDR)

Content & Downloads

Product
Technology
Aperture Size
Trim / Trimless
Wattage
Delivered Lumens
SPEC Sheets
IES Files
REVIT Files
Install Sheets

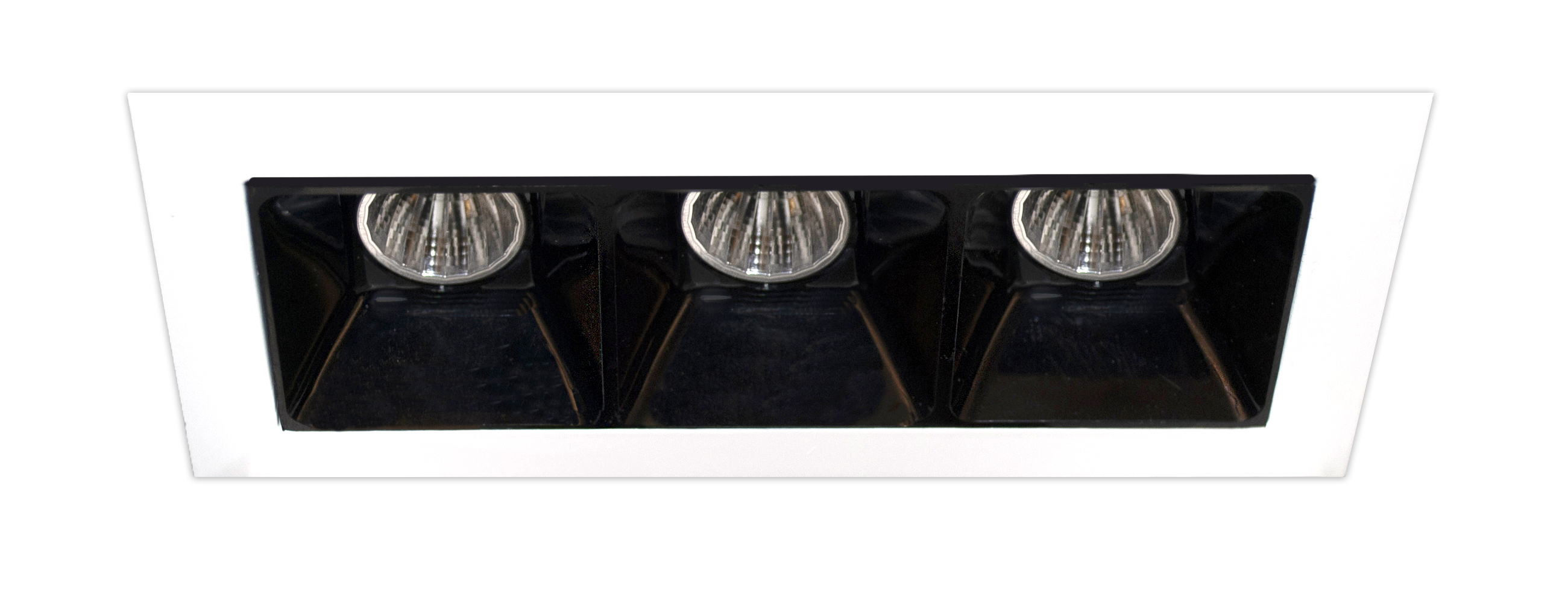

3 Cell
Technology
Aperture Size1.5""
Trim / TrimlessY / Y
Wattage2.6 W/Cell
Delivered Lumens552 max
SPEC Sheets
REVIT Files

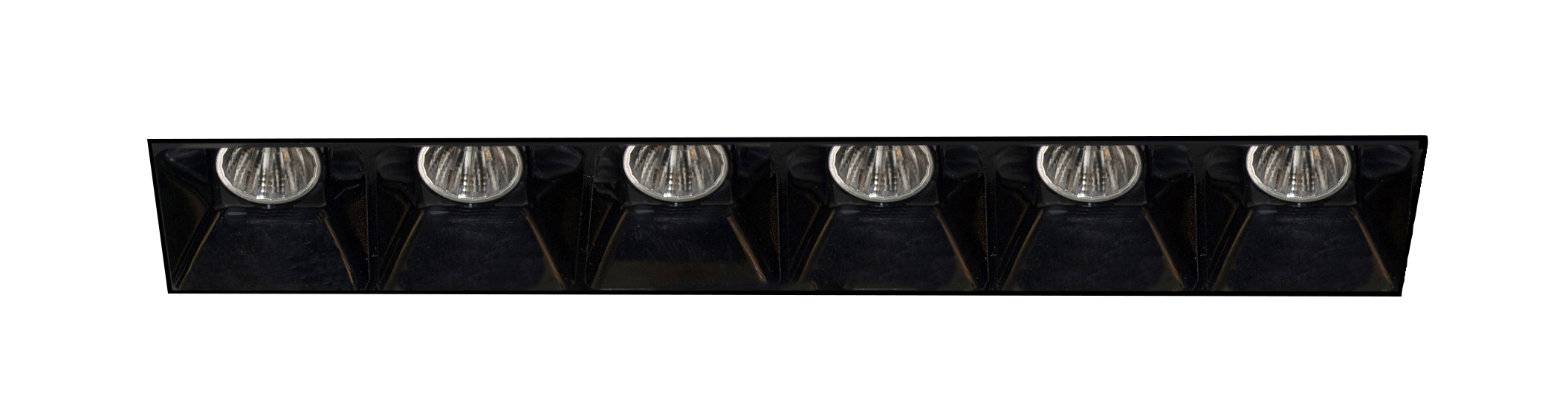

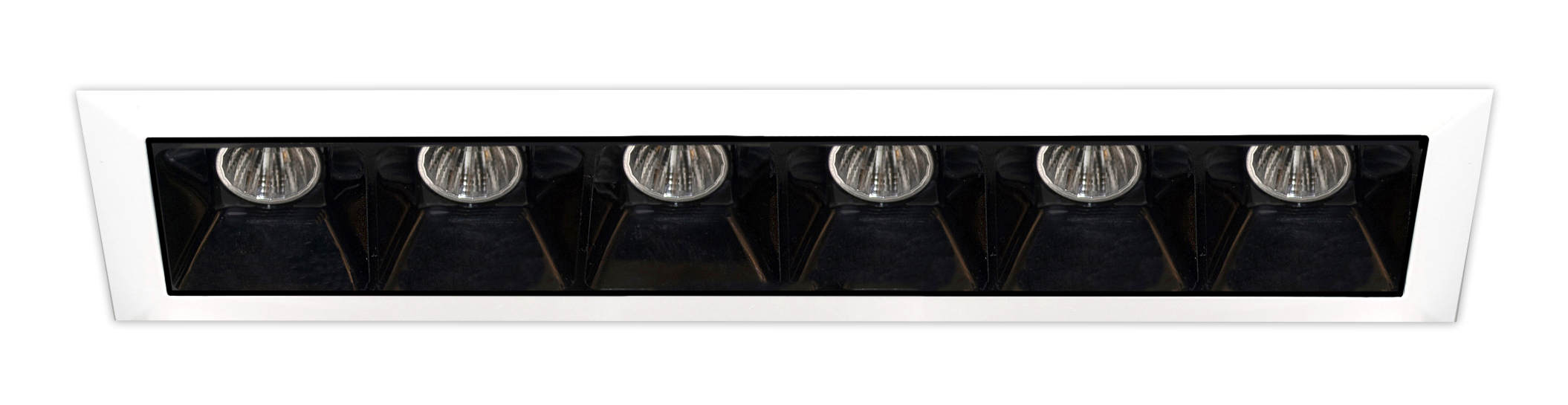

6 Cell
Technology
Aperture Size1.5""
Trim / TrimlessY / Y
Wattage1.25, 2, 2.6 W/Cell
Delivered Lumens1,104 max
SPEC Sheets
REVIT Files
9 Cell
Technology
Aperture Size1.5""
Trim / TrimlessY / Y
Wattage1.25, 2, 2.6 W/Cell
Delivered Lumens1,656 max
SPEC Sheets
REVIT Files
12 Cell
Technology
Aperture Size1.5""
Trim / TrimlessY / Y
Wattage1.25, 2, 2.6 W/Cell
Delivered Lumens2,208 max
SPEC Sheets
REVIT Files

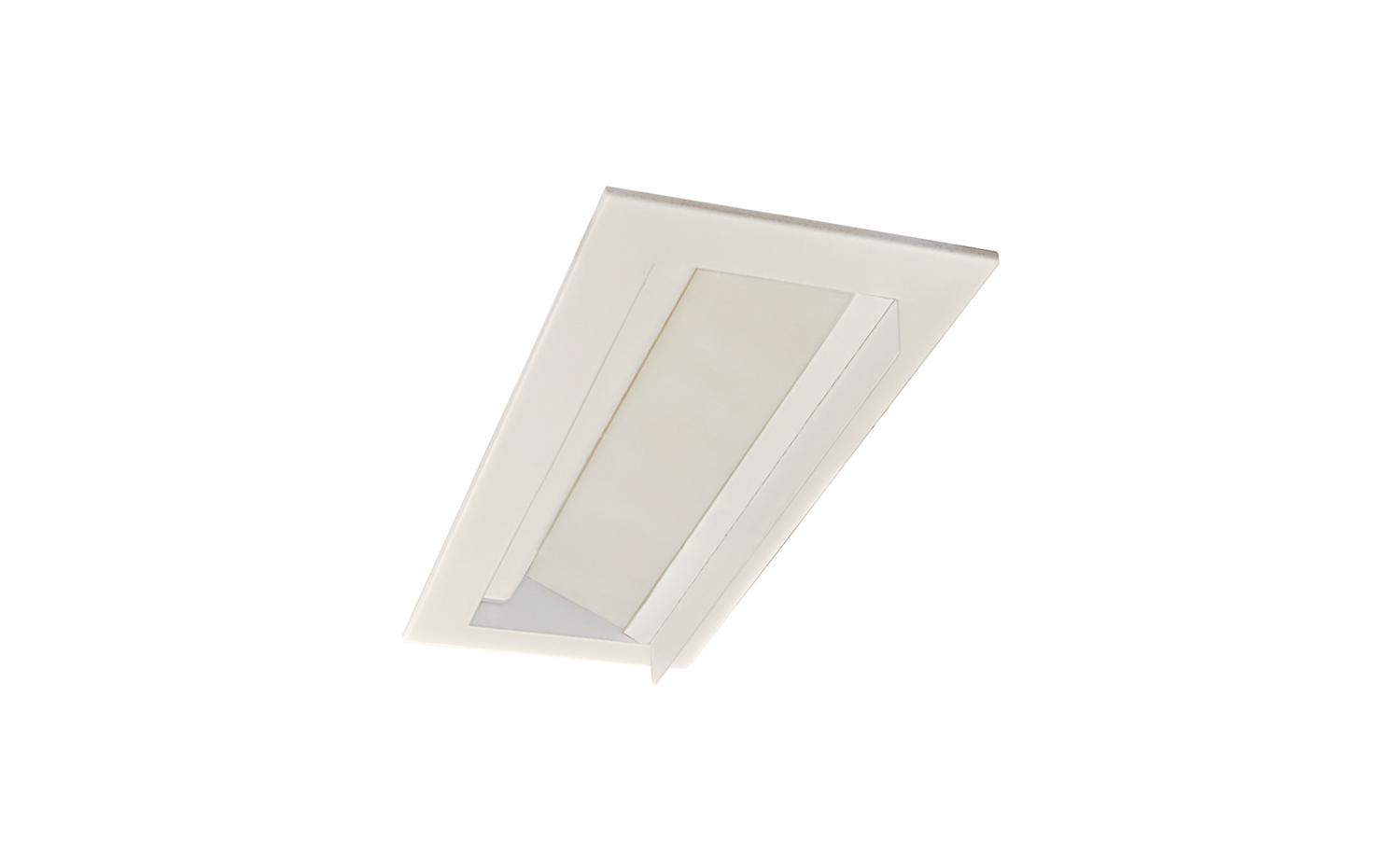

3 Cell Wall Wash
Technology
Aperture Size1.5"
Trim / TrimlessY / N
Wattage8
Delivered Lumens388 max
IES Files
INSTALL Sheets
REVIT Files
SPEC Sheets
6 Cell Wall Wash
Technology
Aperture Size1.5"
Trim / TrimlessY / N
Wattage7.5, 12, 15.6
Delivered Lumens776 max
IES Files
INSTALL Sheets
REVIT Files
SPEC Sheets
