Rook 250 Round Pendant Family

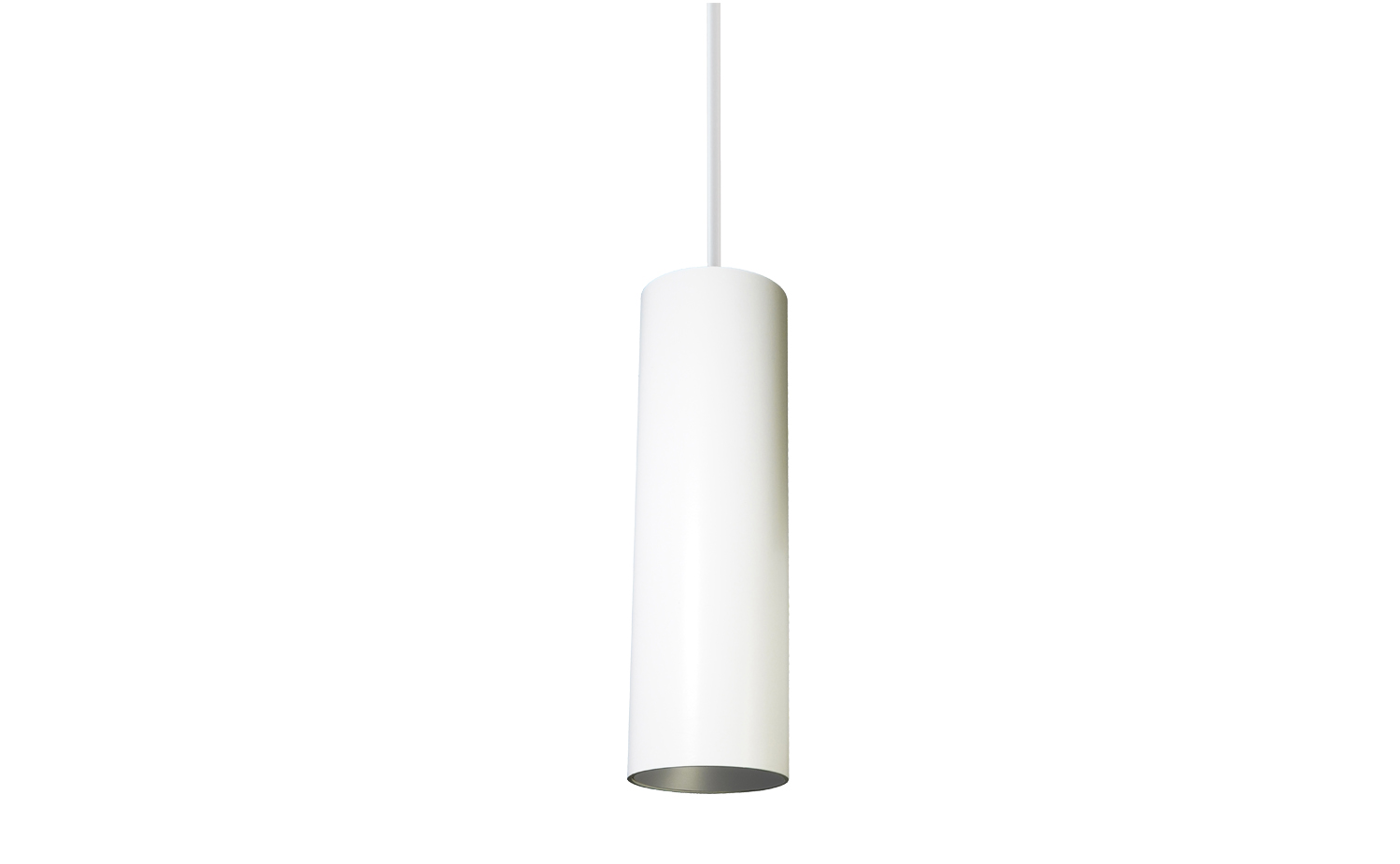

The Rook 250 pendant is the ultimate, all-in-one cylinder lighting fixture, with integral drivers that allow for quick and easy installation and the ability to control direct and indirect lighting separately. Measuring 9" in height, the  Rook 250 offers single-point suspension, surface and single circuit track mounting options and maximizes a 2.5" aperture with several performance outputs and finishes to stir and grab attention.

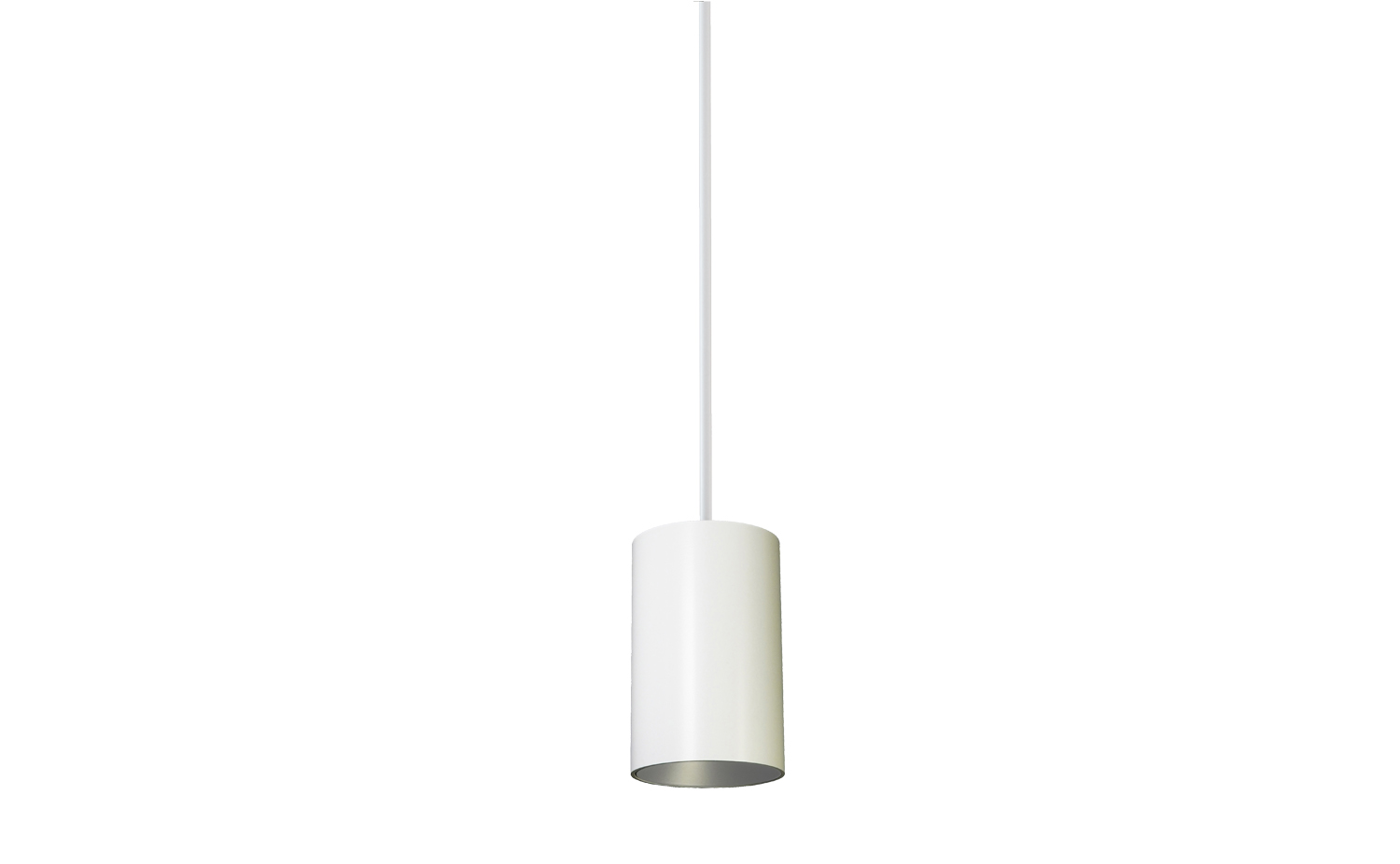

The Rook 250 Mini translates the award-winning comfort, control and performance of our downlight families into a beautiful, slender solution ideal for open-ceiling applications where downlight performance is required in a more strikingly decorative manner. Just under 4½ inches in height, this small and aesthetically clean round  pendant maximizes a 2.5" aperture and several performance outputs and finishes to generate focused direct or  direct/indirect lighting that stirs drama and grabs attention.

The Rook 250 Mini Frame-Mount offers remote drivers in the most convenient location: above each fixture. The housing allows for more driver options, single or dual circuit control and accommodates EM battery packs. The  Frame Mount installation method is perfect for a trimless, clean and minimal aesthetic. Just under 4.5" in  height, this small round pendant maximizes a 2.5" aperture with several performance outputs and finishes to  stir and grab attention.

Features & Benefits

Wattage

20 max

Lumen Output

1,836 max

Candle Beam Center Power (CBCP)

4,937 max

Color Temp (CCT)

2700K , 3000K , 3500K , 4000K

Color Rendering Index (CRI)

80+ , 90+

Technology

Fixture Modification Request (EDR)

Content & Downloads

Product
Technology
Aperture Size
Trim / Trimless
Wattage
Delivered Lumens
SPEC Sheets
IES Files
REVIT Files
Install Sheets
ROOK250 Direct
Technology
Aperture Size2.5"
Trim / TrimlessN / N
Wattage6, 8, 10, 12, 14, 16, 18, 20
Delivered Lumens1,836 max
IES Files
REVIT Files
SPEC Sheets
ROOK250 Direct/Indirect
Technology
Aperture Size2.5"
Trim / TrimlessN / N
Wattage6, 8, 10, 12
Delivered Lumens1,752 max
IES Files
REVIT Files
SPEC Sheets
ROOK250 Mini Direct
Technology
Aperture Size2.5"
Trim / TrimlessN / N
Wattage6, 8, 10, 12, 14, 16, 18
Delivered Lumens1,671 max
IES Files
REVIT Files
SPEC Sheets
ROOK250 MIni Direct/Indirect
Technology
Aperture Size2.5"
Trim / TrimlessN / N
Wattage6, 8, 10, 12
Delivered Lumens1,752 max
IES Files
REVIT Files
SPEC Sheets
ROOK250 Mini Direct - Frame Mount
Technology
Aperture Size2.5"
Trim / TrimlessN / N
Wattage6, 8, 10, 12, 14, 16, 18
Delivered Lumens1,671 max
IES Files
INSTALL Sheets
REVIT Files
SPEC Sheets
ROOK250 Mini Direct/Indirect - Frame Mount
Technology
Aperture Size2.5"
Trim / TrimlessN / N
Wattage6, 8, 10, 12
Delivered Lumens1,752 max
IES Files
INSTALL Sheets
REVIT Files
SPEC Sheets
