Stadia Downlight Family

Stadia 5 in
Stadia 5 in

Stadia is a collection of architectural decorative downlights that offers designers a new way to add visual interest in a space while providing soft, uniform ambient lighting. Stadia downlights have a soft square trim extending 2” below the ceiling that is offered in a variety of standard and premium finishes including neutrals, hues, metallic and wood grain finishes. The trim is offered in 2 sizes: 5” and 8” and is offered both with a single-tone finish, where the outer trim and inner bevel have the same finish, or a two-tone finish, where the outer trim and inner bevel have different finishes. Amerlux collaborated with Gensler, serving as product design consultant, for the Stadia collection.

Features & Benefits

Wattage

5": 22 max
8": 34 max

Lumen Output

5": 1545 max
8": 3100 max

Color Temp (CCT)

2700K , 3000K , 3500K , 4000K

Color Rendering Index (CRI)

80+ , 90+

Technology

Fixture Modification Request (EDR)

Content & Downloads

Product
Technology
Aperture Size
Trim / Trimless
Wattage
Delivered Lumens
SPEC Sheets
IES Files
REVIT Files
Install Sheets

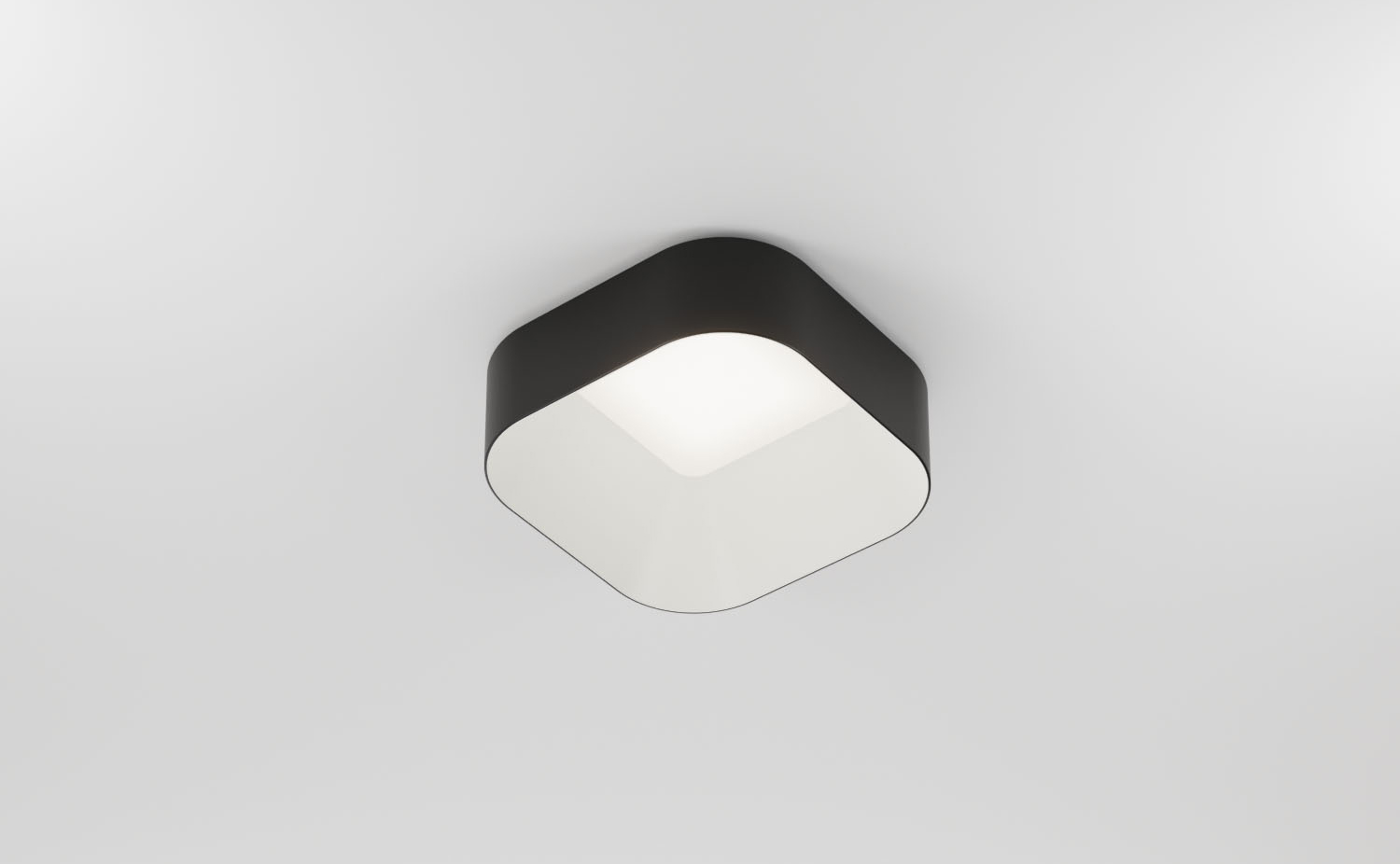

Stadia 5"
Technology
Aperture Size5"
Trim / TrimlessN / N
Wattage4, 6, 9, 17, 22
Delivered Lumens1545 max
INSTALL Sheets
REVIT Files
SPEC Sheets

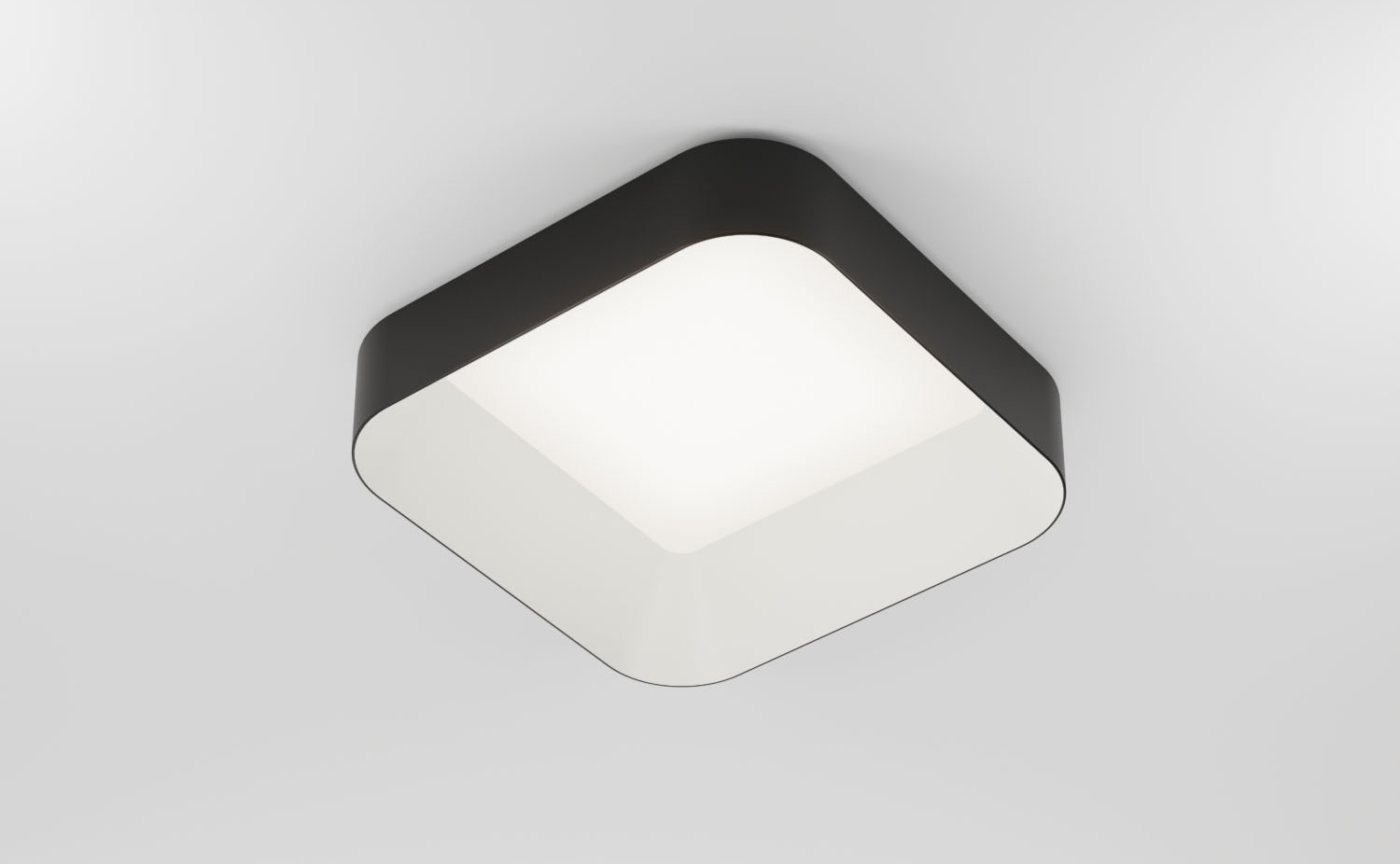

Stadia 8"
Technology
Aperture Size8"
Trim / TrimlessN / N
Wattage9, 12, 18, 23, 34
Delivered Lumens3100 max
INSTALL Sheets
SPEC Sheets
