Evoke 4.75" Round Downlight Family

Adjustable
Adjustable

The Evoke® 4.75 Downlight features the fit, finish and attention to detail of the existing Evoke line that you've loved since its introduction in 2006. With the current advancements in lighting technology Evoke 4.75" delivers the performance, energy savings and color you expect from a spec-grade LED downlight. Suitable for a variety of lighting schemes featuring general, accent and display applications, Evoke 4.75" gives architects and lighting designers the flexibility to complete sustainable lighting designs. Impressive performance, high lumen delivery, consistent color. Round and Square trim available.

Features & Benefits

Wattage

48 max

Lumen Output

4,103 max

Candle Beam Center Power (CBCP)

21,790 max

Color Temp (CCT)

2200K , 2700K , 3000K , 3500K , 4000K , Class A (Full Gamut) , Crisp White (Full Gamut)

Color Rendering Index (CRI)

80+ , 90+

Technology

Fixture Modification Request (EDR)

Content & Downloads

Product
Technology
Aperture Size
Trim / Trimless
Wattage
Delivered Lumens
SPEC Sheets
IES Files
REVIT Files
Install Sheets

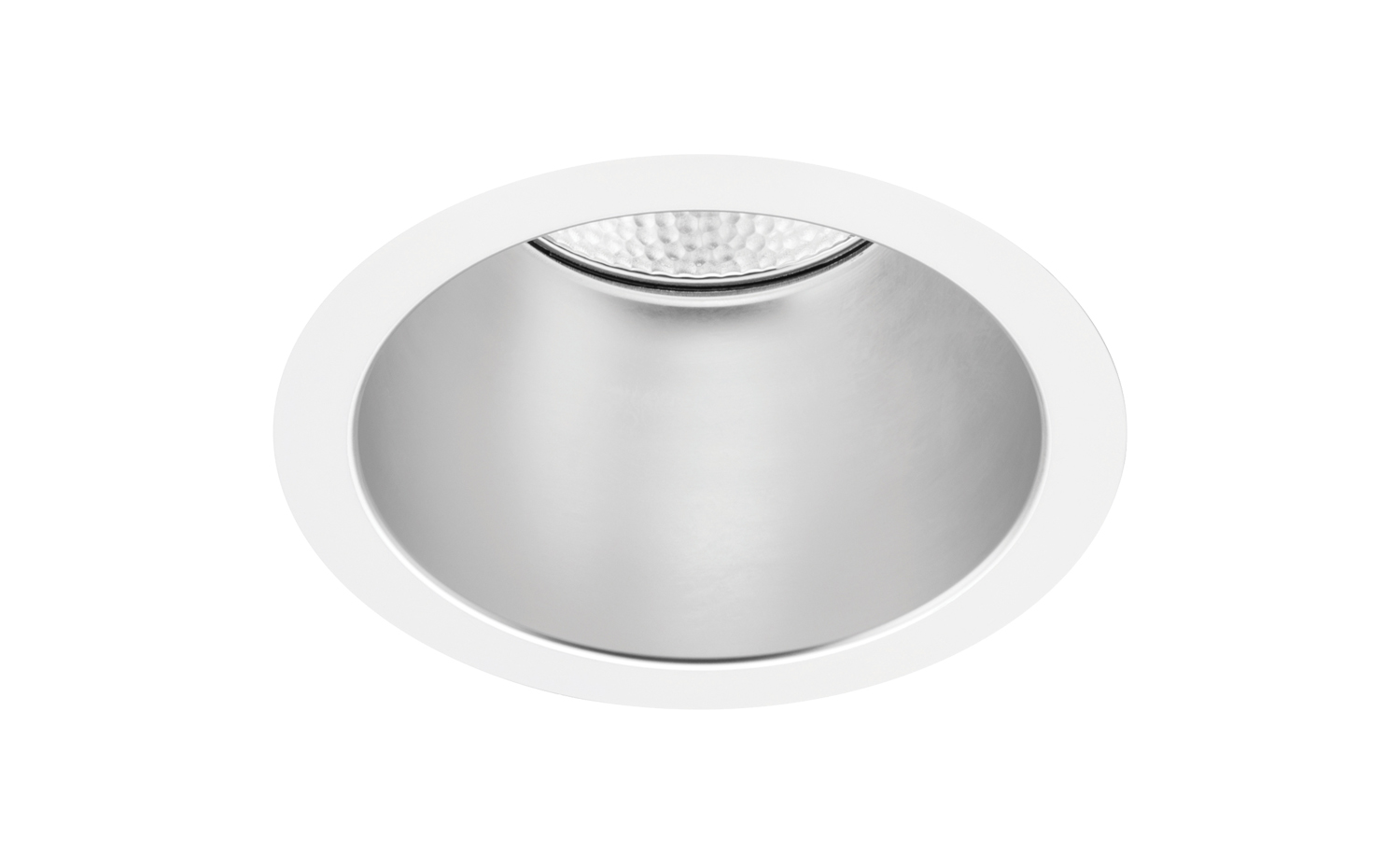

Downlight
Technology
Aperture Size4.75"
Trim / TrimlessY / Y
Wattage13, 16, 21, 29
Delivered Lumens2,104 max
IES Files
INSTALL Sheets
REVIT Files
SPEC Sheets
HP Downlight
Technology
Aperture Size4.75"
Trim / TrimlessY / Y
Wattage27, 36, 42, 48
Delivered Lumens3,804 max
INSTALL Sheets
REVIT Files
SPEC Sheets

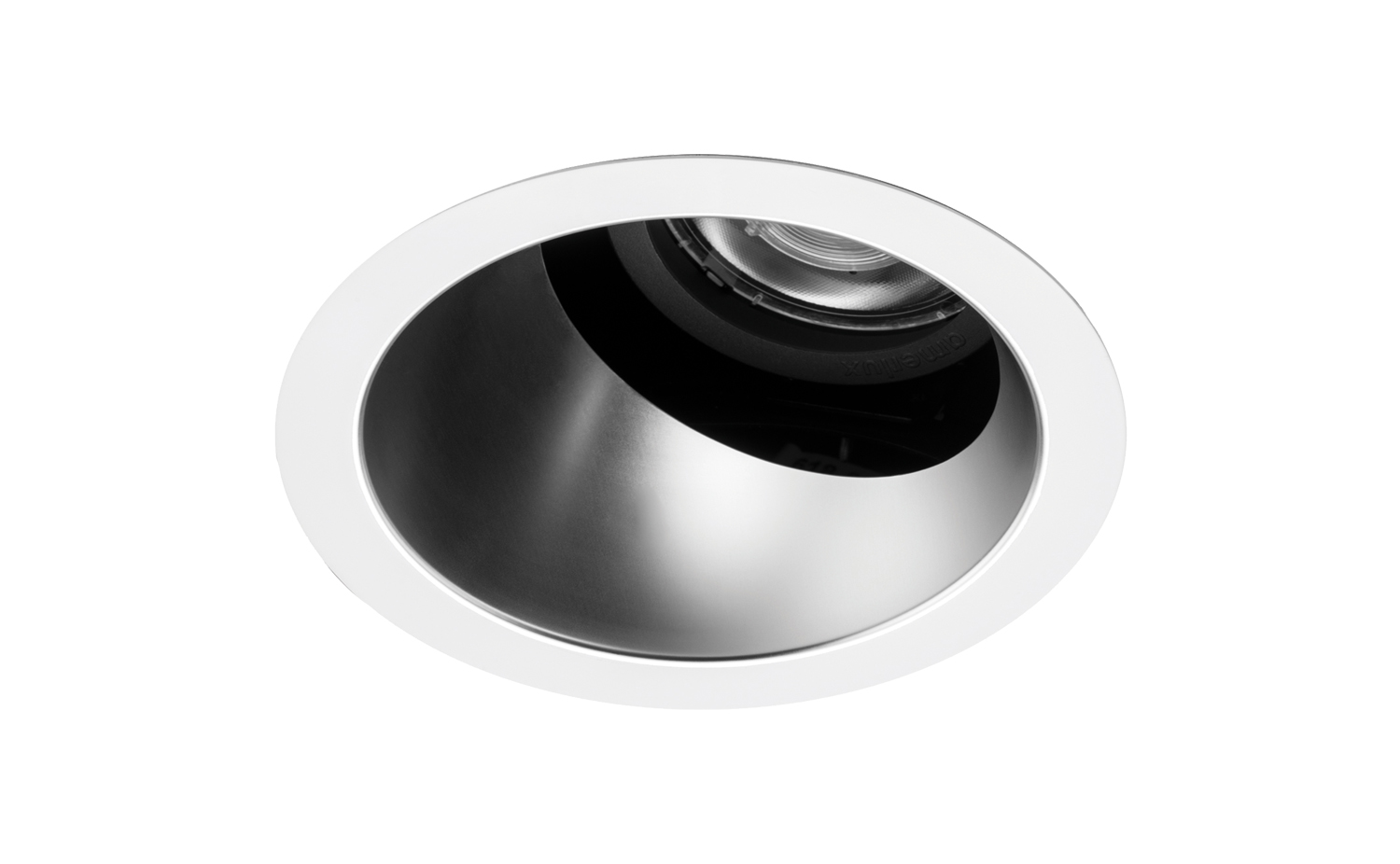

Adjustable
Technology
Aperture Size4.75"
Trim / TrimlessY / Y
Wattage11, 15, 18, 20, 21, 23, 25, 29, 33
Delivered Lumens-
INSTALL Sheets
REVIT Files

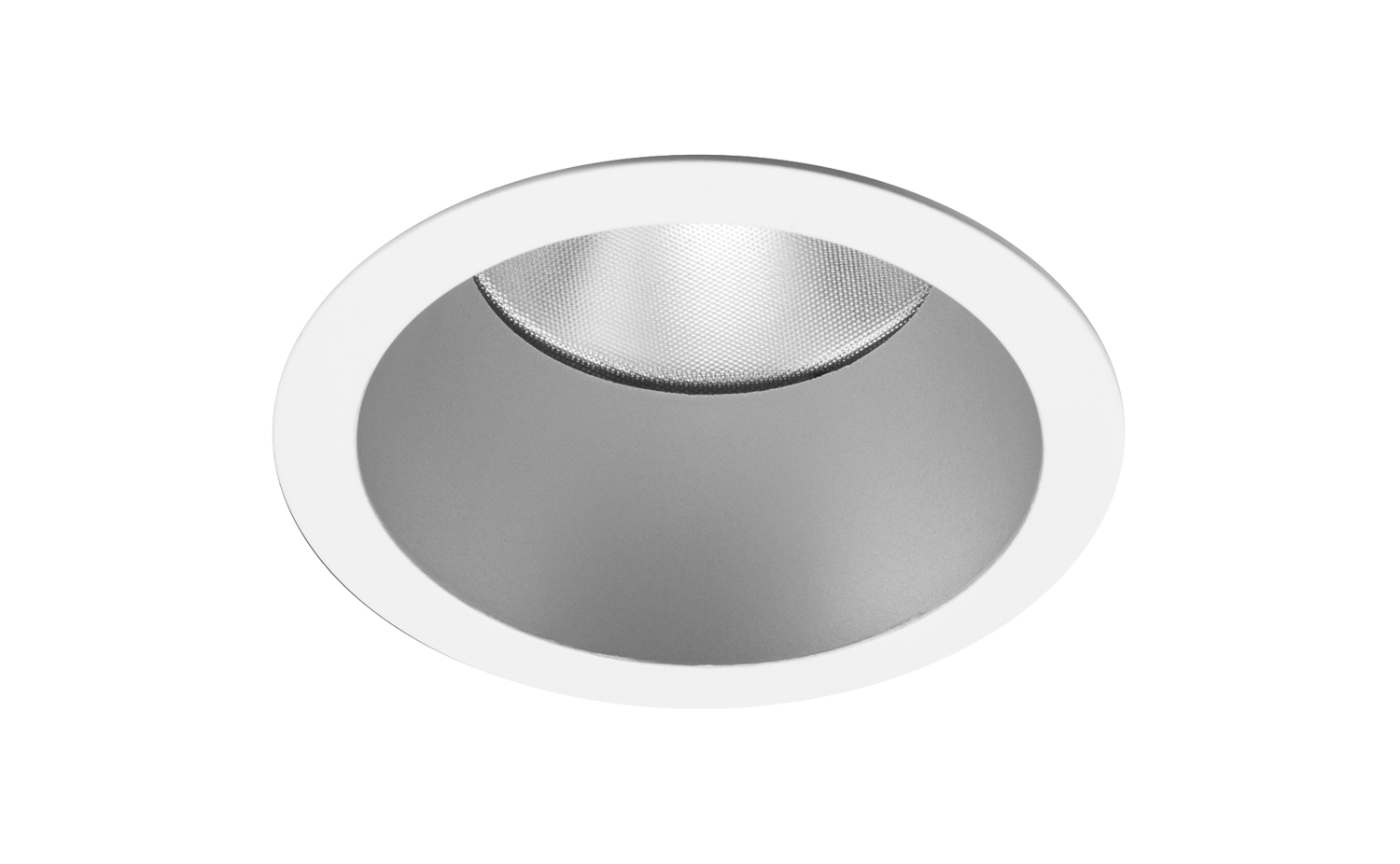

Lensed Downlight
Technology
Aperture Size4.75"
Trim / TrimlessY / Y
Wattage16, 21, 30, 34, 42, 46
Delivered Lumens4,103 max
INSTALL Sheets
REVIT Files
SPEC Sheets

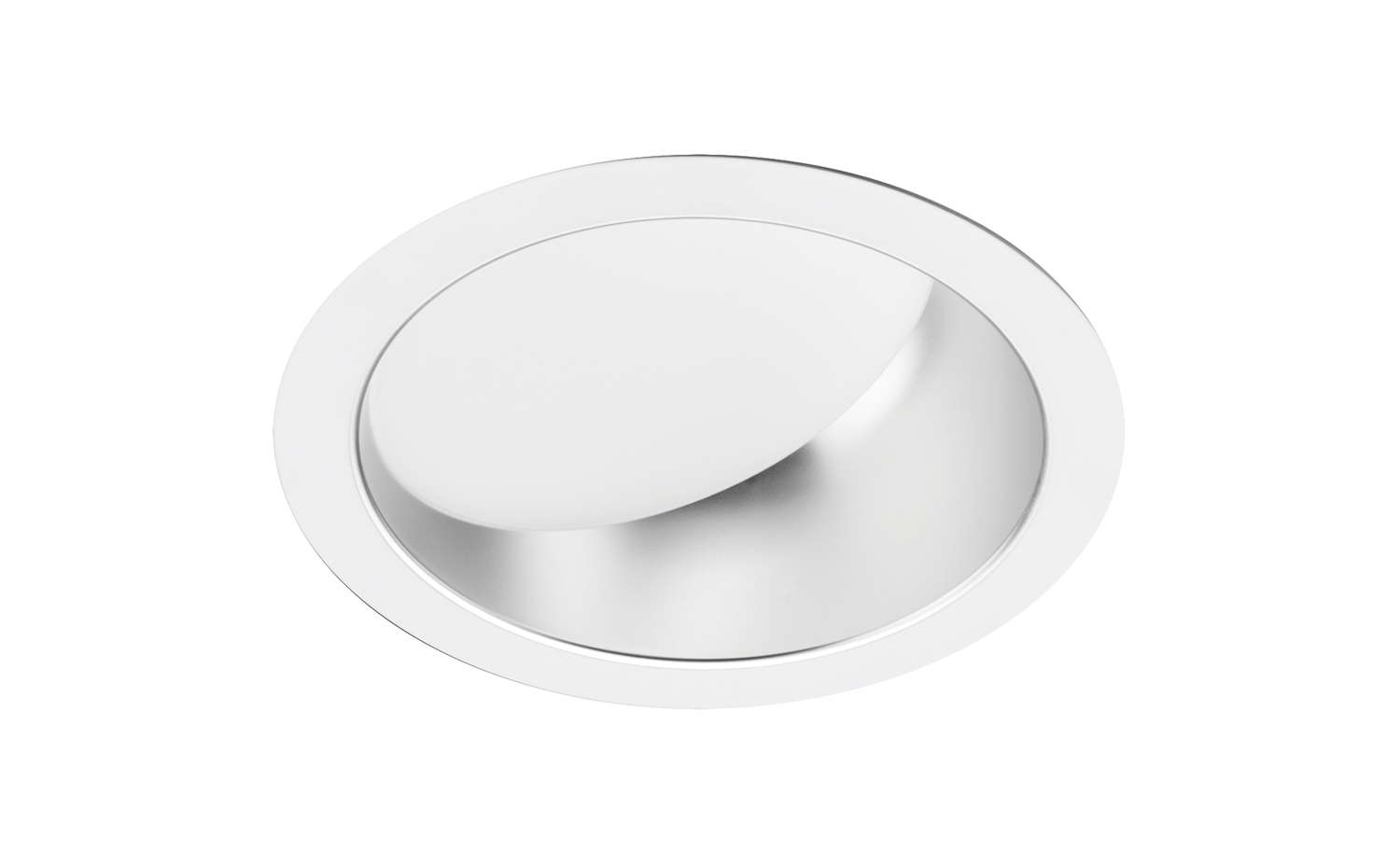

Lensed Wall Wash
Technology
Aperture Size4.75""
Trim / TrimlessY / Y
Wattage16, 21, 30, 34, 42, 46
Delivered Lumens3,281 max
INSTALL Sheets
REVIT Files
SPEC Sheets
Shallow Trim Downlight
Technology
Aperture Size4.75""
Trim / TrimlessY / Y
Wattage13, 16, 21, 29
Delivered Lumens3,804 max
IES Files
INSTALL Sheets
REVIT Files
Shallow Trim Lensed Downlight
Technology
Aperture Size4.75""
Trim / TrimlessY / Y
Wattage16, 21, 30, 34, 42, 46
Delivered Lumens4,103 max
IES Files
INSTALL Sheets
REVIT Files
