Passo SQ 6" Family
(New Construction/Retrofit)

Directional
Directional

The Passo family of luminaires includes high quality, architecturally relevant fixtures suitable for use in both outdoor or indoor applications. All members of the Passo family feature an independently sealed optical chamber and fully potted driver. These features are especially beneficial in exterior applications as they help compensate for the challenges in getting a good seal between a pre-installed back box and the faceplate as well as those challenges in fully sealing the conduit system Each luminaire is available in a choice of two output levels to help tailor the desired illuminance to the project and a standard 0-10V dimmable driver allows even further flexibility.


Products marked with PoE logo will be compatible for use with PoE, consult factory for compatible systems.

Features & Benefits

Wattage

16.2 max

Lumen Output

367 max

Color Temp (CCT)

2700K , 3000K , 4000K , Amber

Technology

Fixture Modification Request (EDR)

Content & Downloads

Product
Technology
Aperture Size
Trim / Trimless
Wattage
Delivered Lumens
SPEC Sheets
IES Files
REVIT Files
Install Sheets

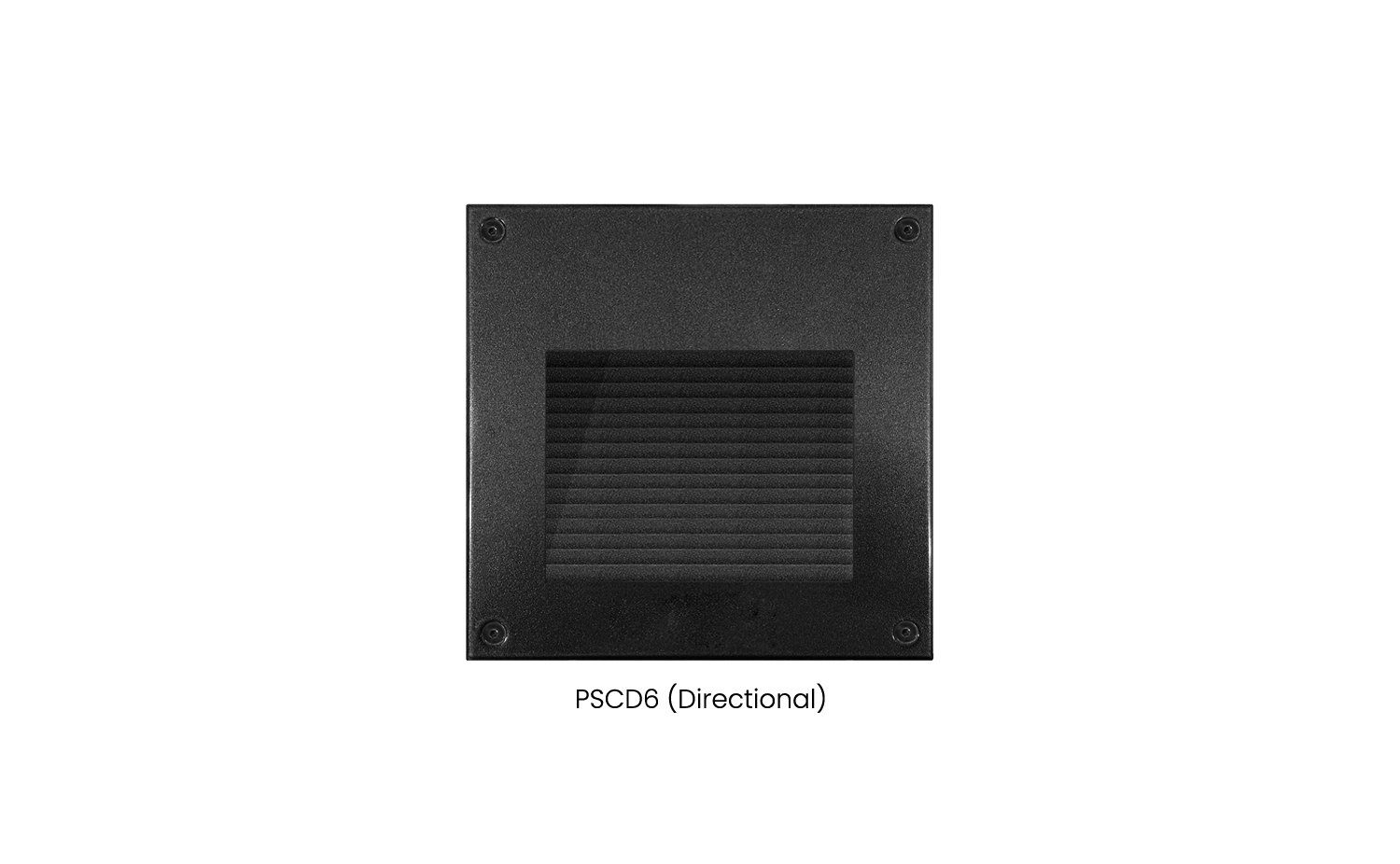

Directional
(New Construction/Retrofit)
Technology
Aperture Size-
Trim / TrimlessN / N
Wattage4.2, 8.1, 16.2
Delivered Lumens188 max
IES Files

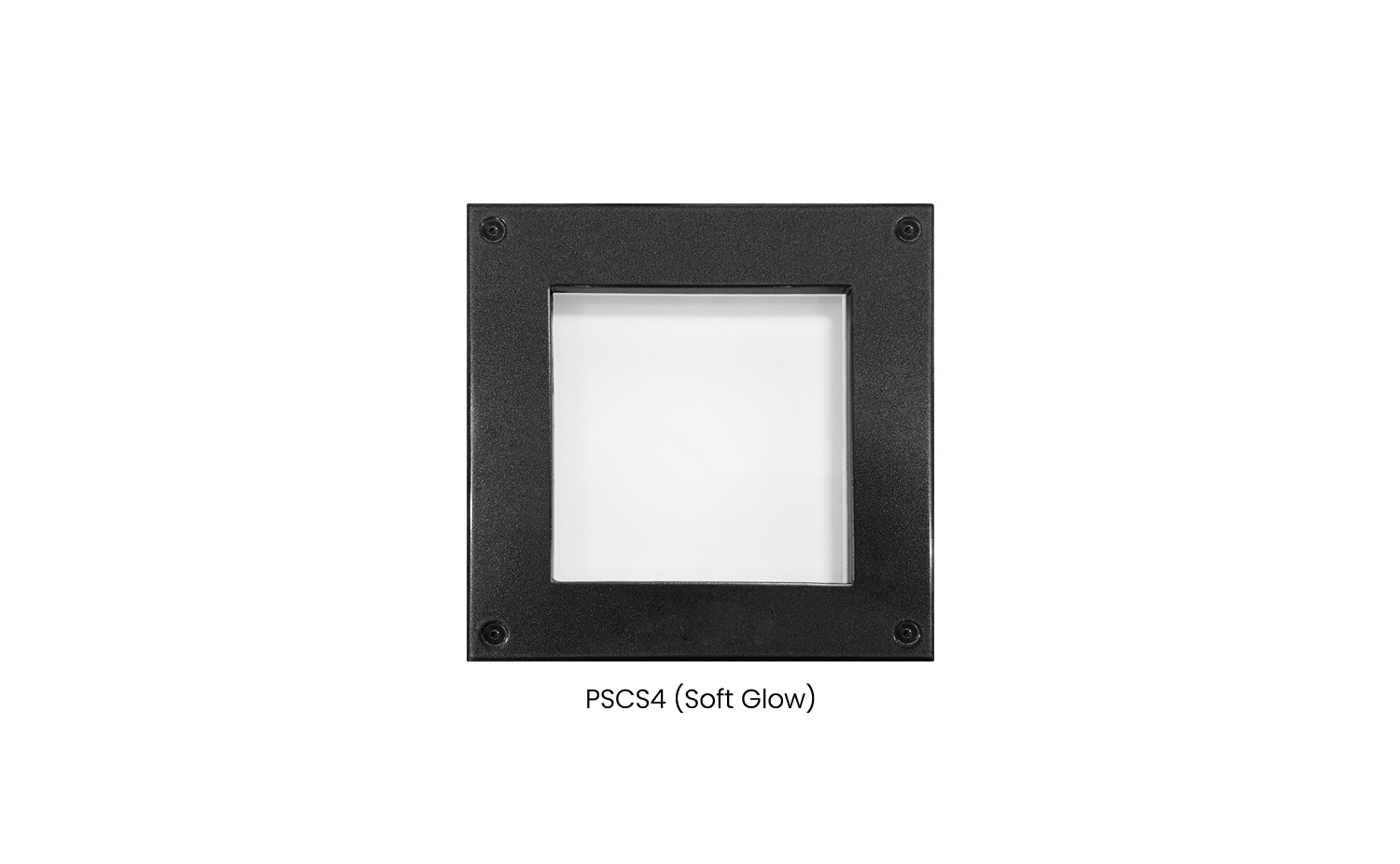

Soft Glow
(New Construction/Retrofit)
Technology
Aperture Size-
Trim / TrimlessN / N
Wattage4.2, 8.1, 16.2
Delivered Lumens367 max
IES Files

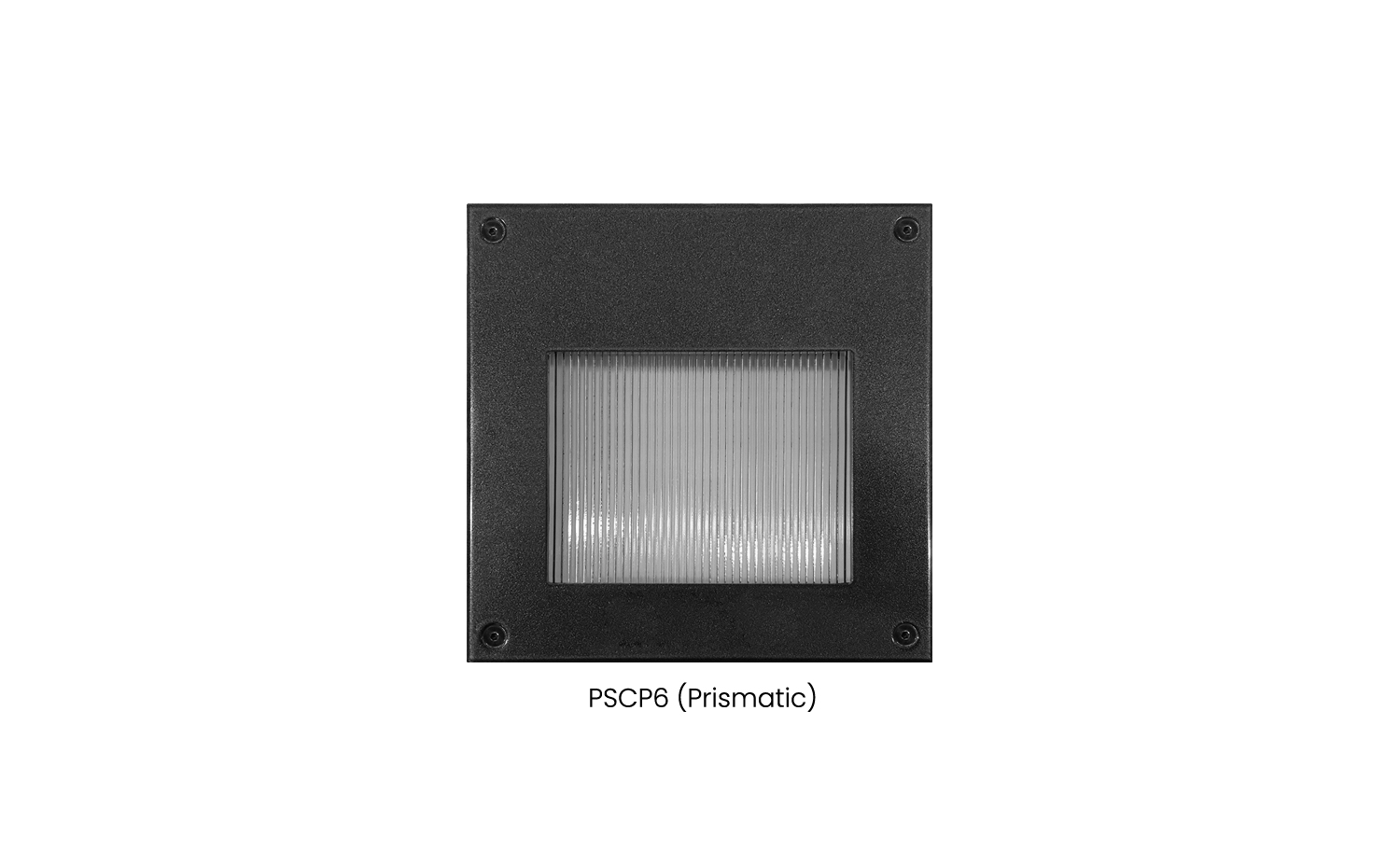

Prismatic
(New Construction/Retrofit)
Technology
Aperture Size-
Trim / TrimlessN / N
Wattage4.2, 8.1, 16.2
Delivered Lumens356 max
IES Files
