Contour Track Head Family

CNTRV33
CNTRV33

Architecturally styled with a mix of soft curves and shape edges, Contour, with various sizes (3x3, 3x4, 4x4), offers high performance accent lighting for retail and supermarket displays. Delivering lumens equivalent to many 20W & 39W metal halide systems. Contour offers excellent beam control and aesthetics.

Features & Benefits

Wattage

32 max

Lumen Output

2,221 max

Candle Beam Center Power (CBCP)

12,319 max

Color Temp (CCT)

2700K , 3000K , 3500K , 4000K

Color Rendering Index (CRI)

80+

Technology

Fixture Modification Request (EDR)

Content & Downloads

Product
Technology
Aperture Size
Trim / Trimless
Wattage
Delivered Lumens
SPEC Sheets
IES Files
REVIT Files
Install Sheets

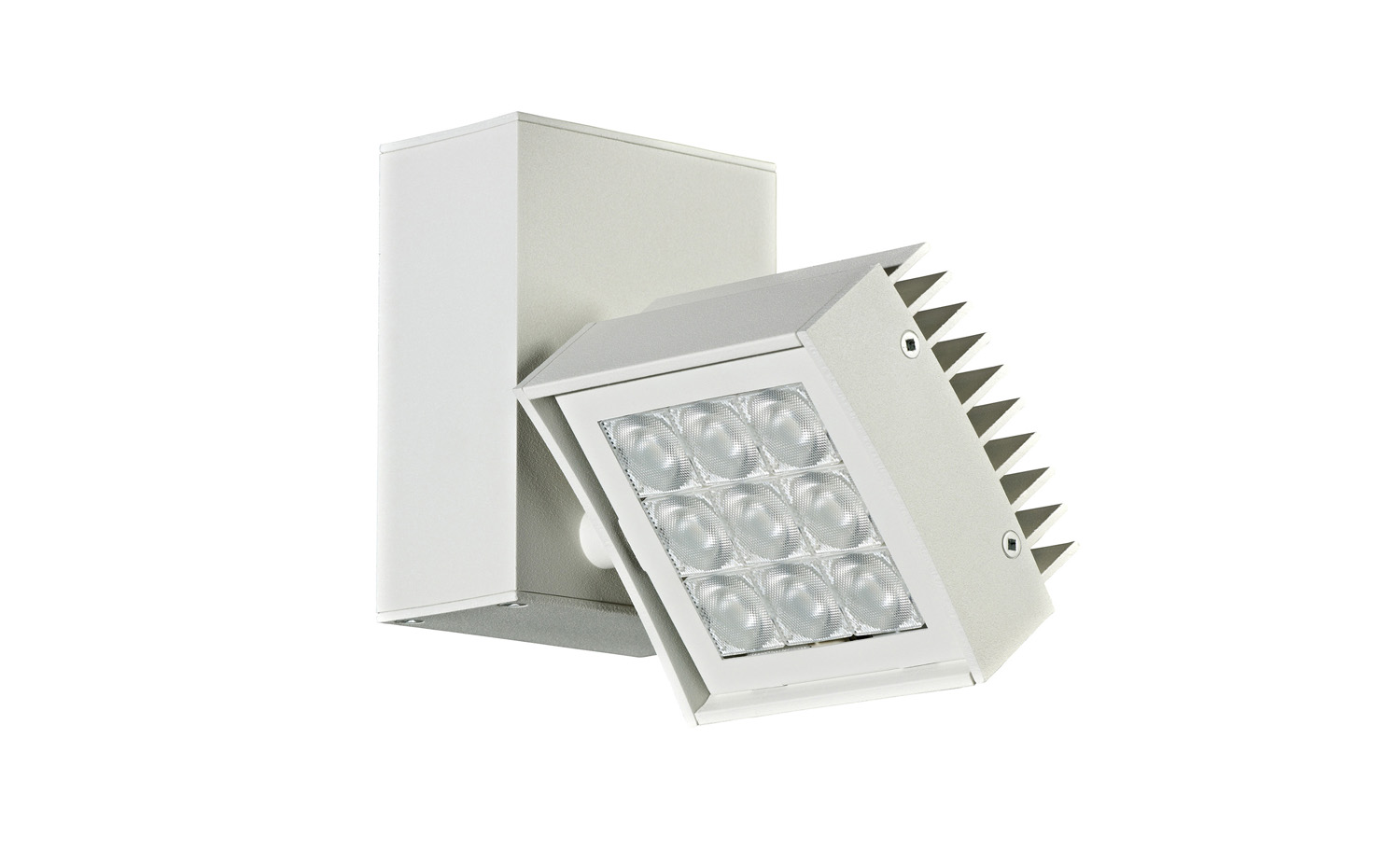

Contour 3x3
Technology
Aperture Size-
Trim / TrimlessN / N
Wattage17
Delivered Lumens 1,164 max
INSTALL Sheets
REVIT Files
SPEC Sheets

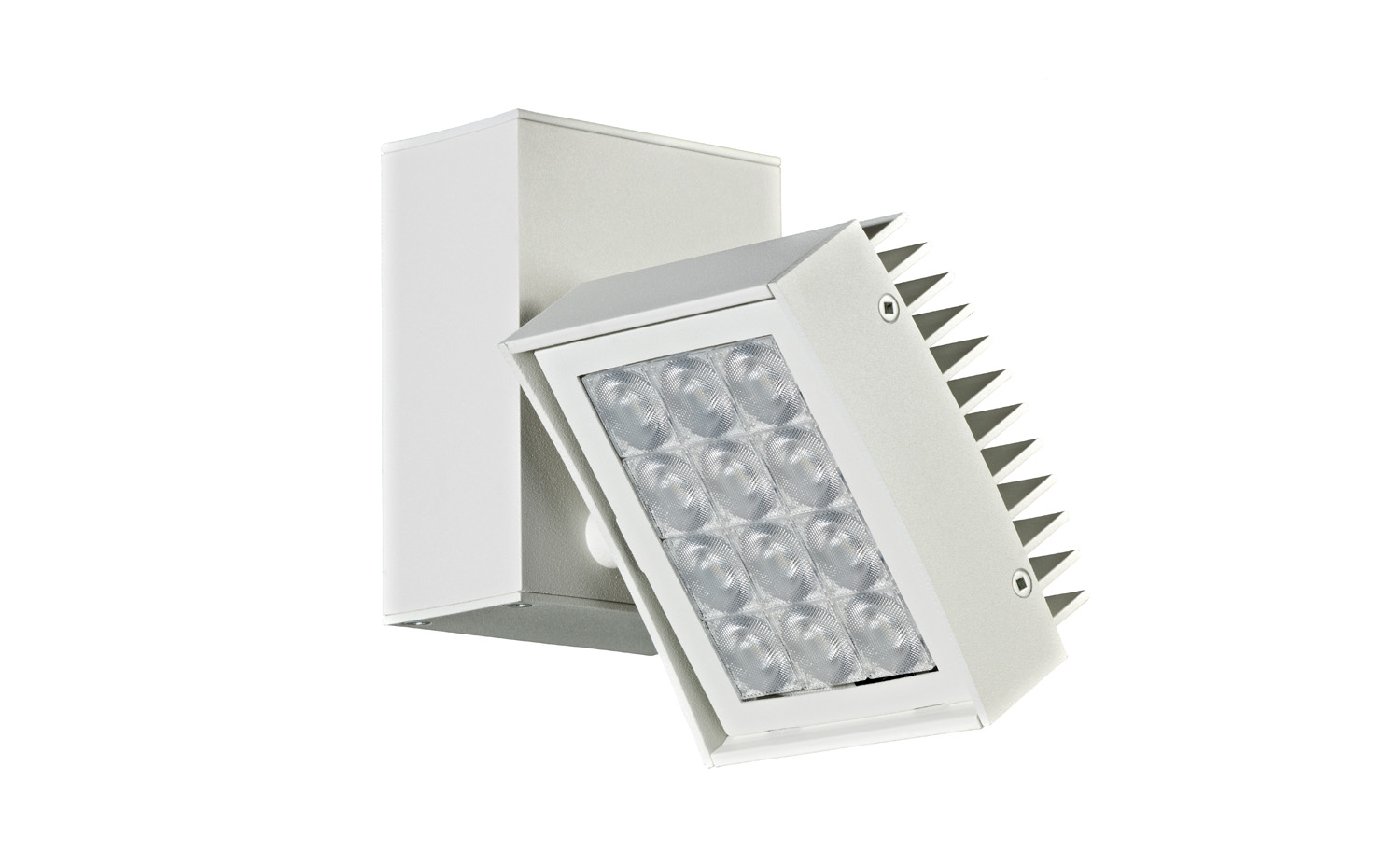

Contour 3x4
Technology
Aperture Size-
Trim / TrimlessN / N
Wattage24
Delivered Lumens1,551 max
SPEC Sheets
REVIT Files
INSTALL Sheets
Contour 4X4
Technology
Aperture Size-
Trim / TrimlessN / N
Wattage32
Delivered Lumens 2,221 max
SPEC Sheets
REVIT Files
INSTALL Sheets
