Rook X Wall Cylinders

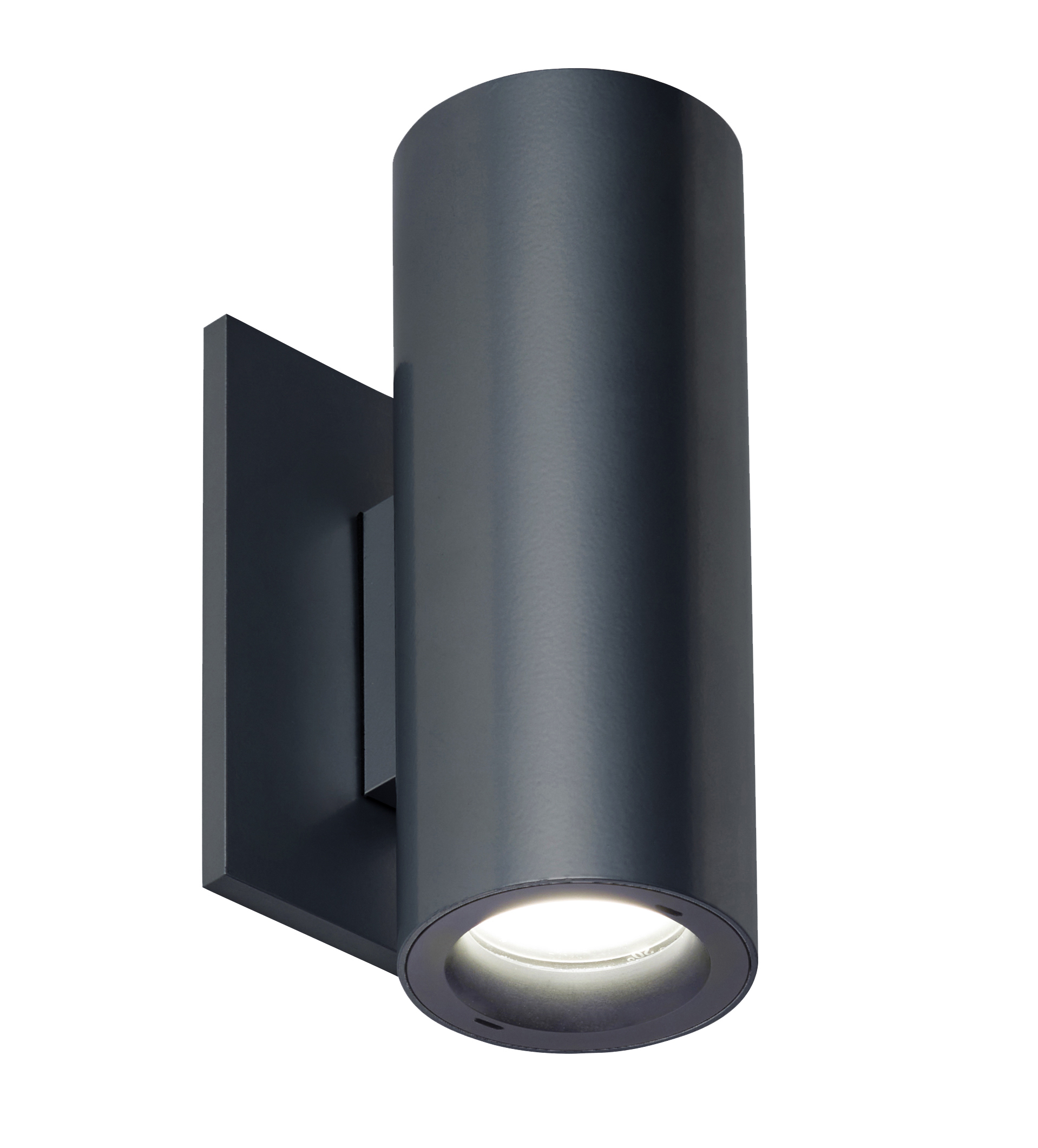

RKX-UD (BLK)
RKX-UD (BLK)
(shown with Standard BLK finish)

The Rook X family of small scale architectural exterior cylinders includes wall mounted fixtures in either a dual output (Up/Down) light, or a single (Up or Down) configurations. An integral driver and a smooth, seamless
body allow the fixture to fit in a wide variety of commercial, hospitality, retail and high end residential applications both Indoor or Outdoor in Wet Locations. Various optical accessories, beam shaping films or a hexcell louver can be changed or added in the field.



Features & Benefits

Wattage

25 max

Lumen Output

2150 max

Color Temp (CCT)

2700K , 3000K , 3500K , 4000K

Color Rendering Index (CRI)

80+ , 90+

Technology

Fixture Modification Request (EDR)

Content & Downloads

Product
Technology
Aperture Size
Trim / Trimless
Wattage
Delivered Lumens
SPEC Sheets
IES Files
REVIT Files
Install Sheets
RKX-UD - Up/Down Light
Technology
Aperture Size2"
Trim / TrimlessN / N
Wattage25
Delivered Lumens2150 max
INSTALL Sheets
REVIT Files

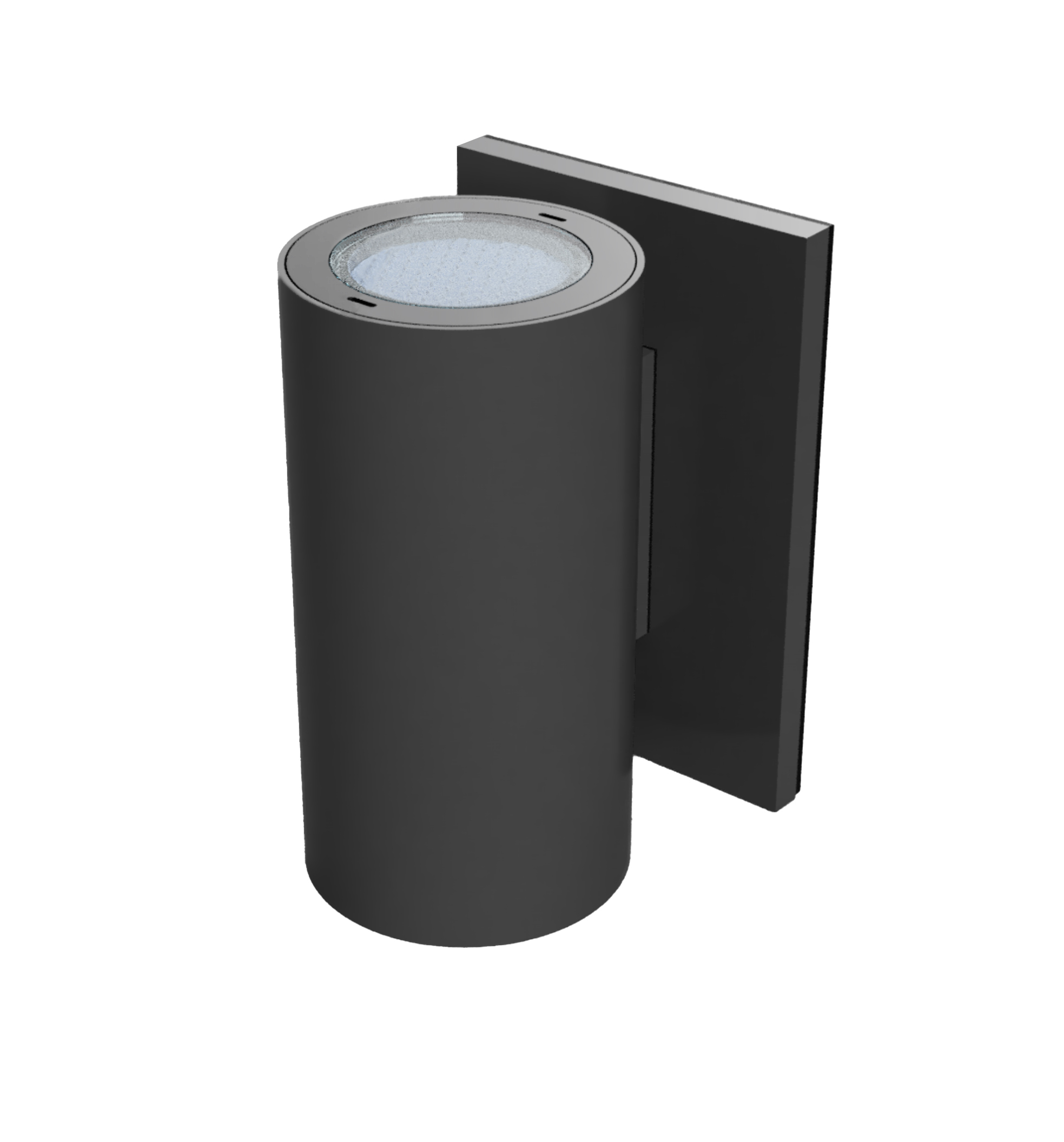

RKX-UW - Up Light Only
Technology
Aperture Size2"
Trim / TrimlessN / N
Wattage12
Delivered Lumens1096 max
IES Files
INSTALL Sheets
REVIT Files

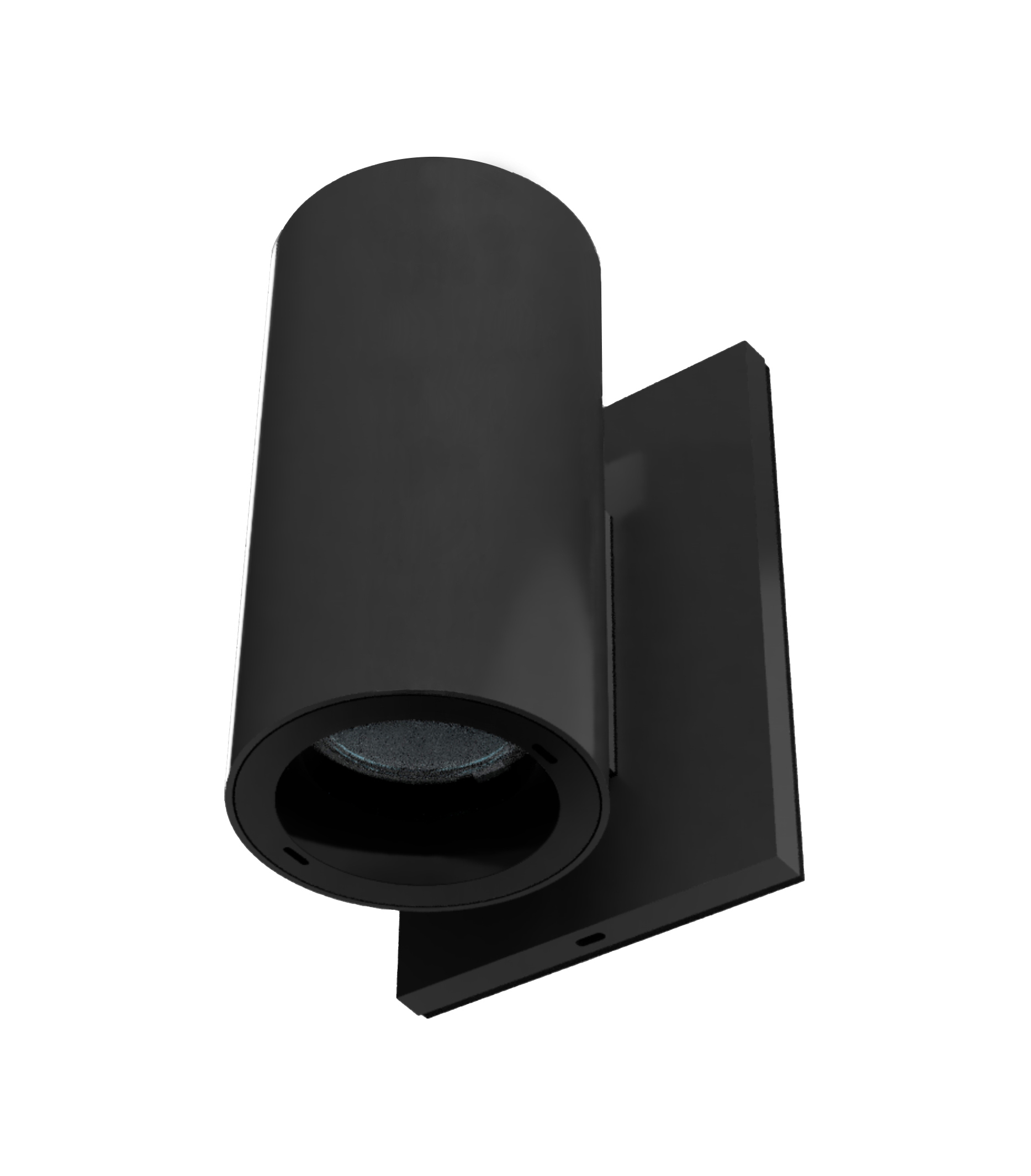

RKX-DW - Down Light Only
Technology
Aperture Size2"
Trim / TrimlessN / N
Wattage12
Delivered Lumens1054 max
IES Files
INSTALL Sheets
REVIT Files
