Finch Wall Mount


The FINCH family of cylinders with a 1” aperture, features exceptional output, flexibility, and a broad range of configurations to provide discreet quality illumination while integrating into the architecture. It is available in a fixed downlight, adjustable (with 50° tilt), wall mount and even exterior ground mount options. Whether installed on ceilings, walls/mullions or the ground, the FINCH family blends seamlessly into its surroundings.

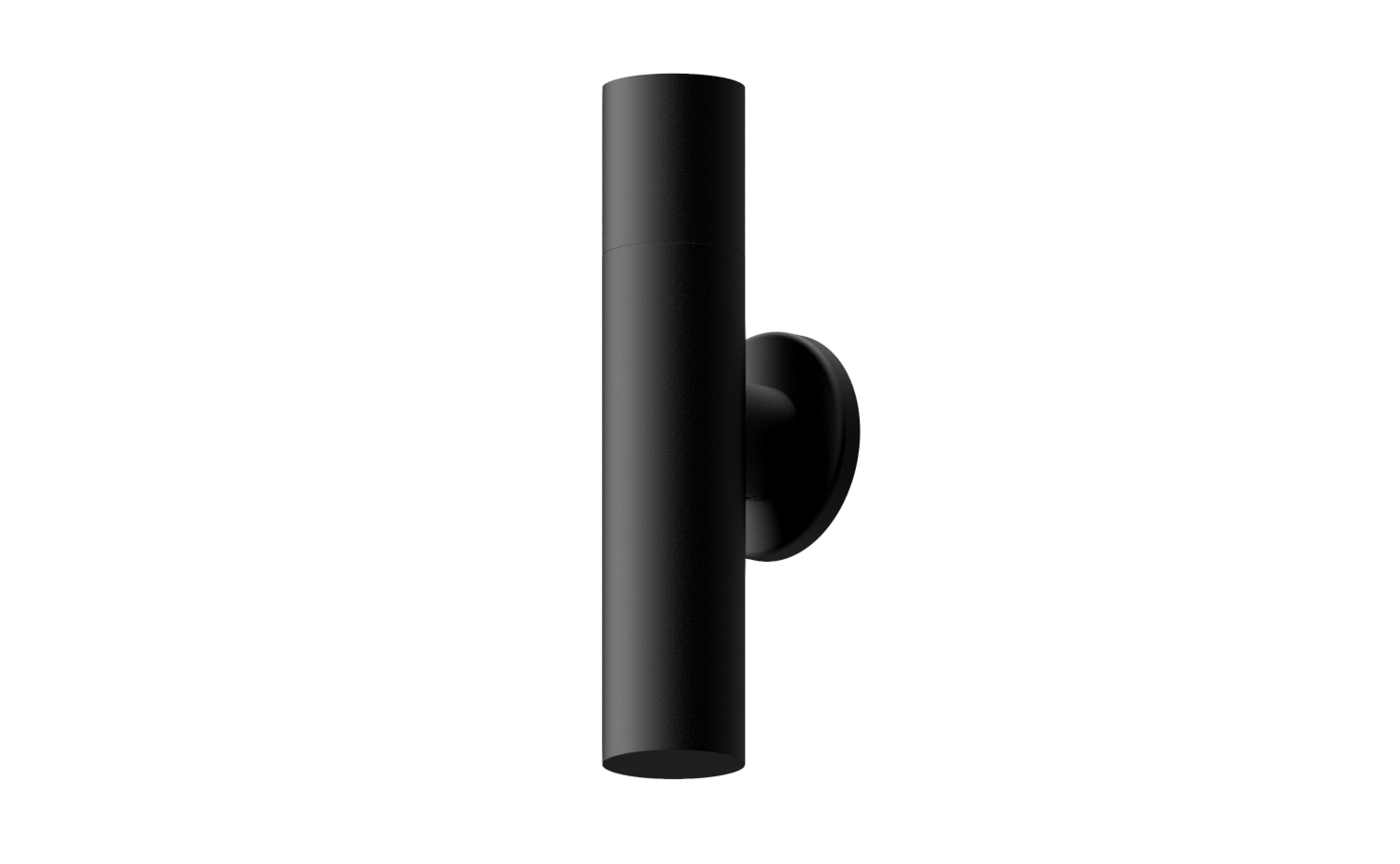

The FINCH wall mount cylinder, 6" in length, offers up to 1000 lm output and has a choice of beveled front door options for additional shielding for the direct portion and a flush lens for the indirect portion, to prevent dust accumulation.

The FINCH wall mount direct/indirect cylinder, 6" in length, offers up to 800 lm output for both direct and indirect, and has a choice of beveled front door options for additional shielding for the direct portion and a flush lens for the indirect portion, to prevent dirt accumulation.

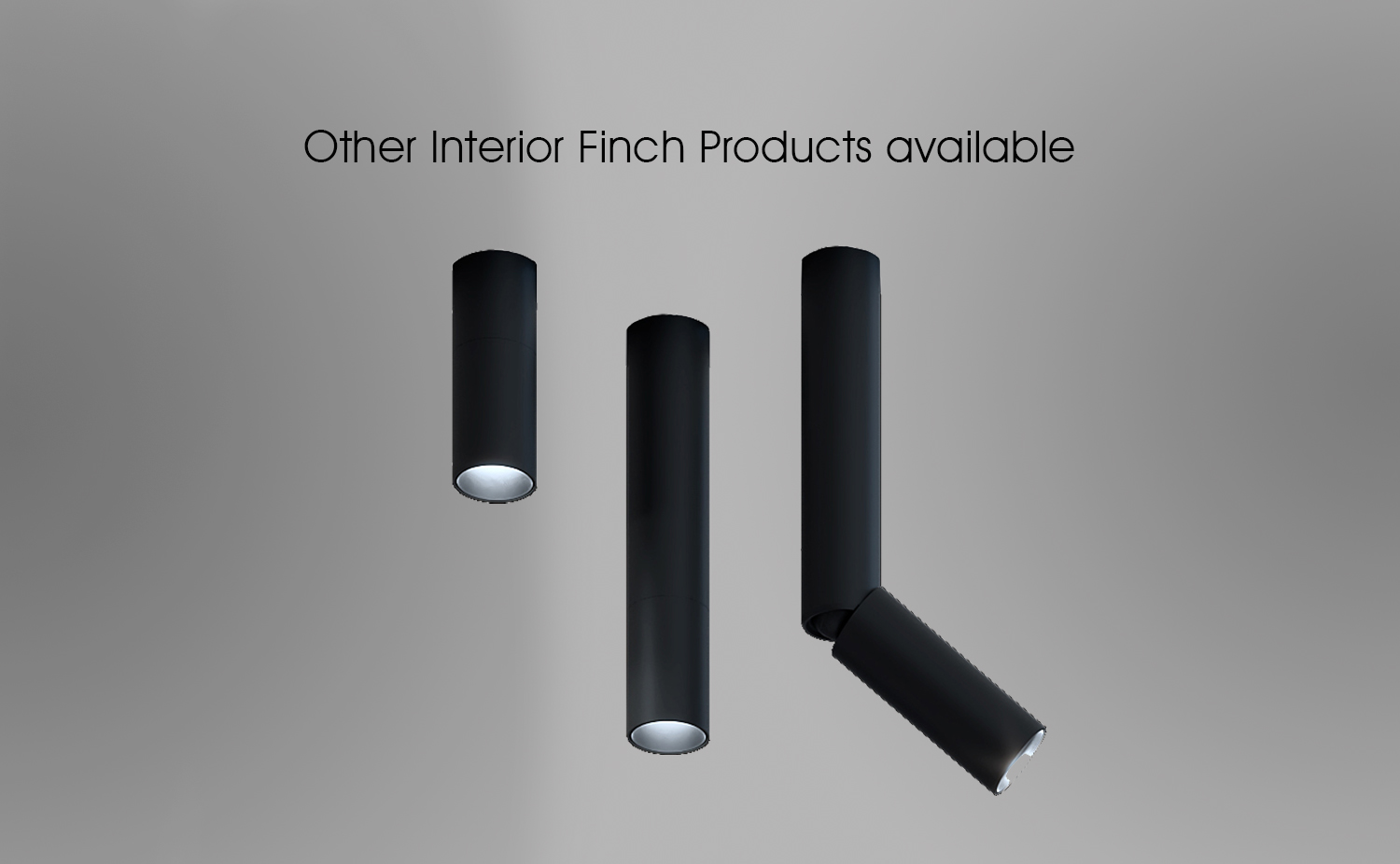

Other Interior Finch Products
Finch Surface Mount fixtures click here

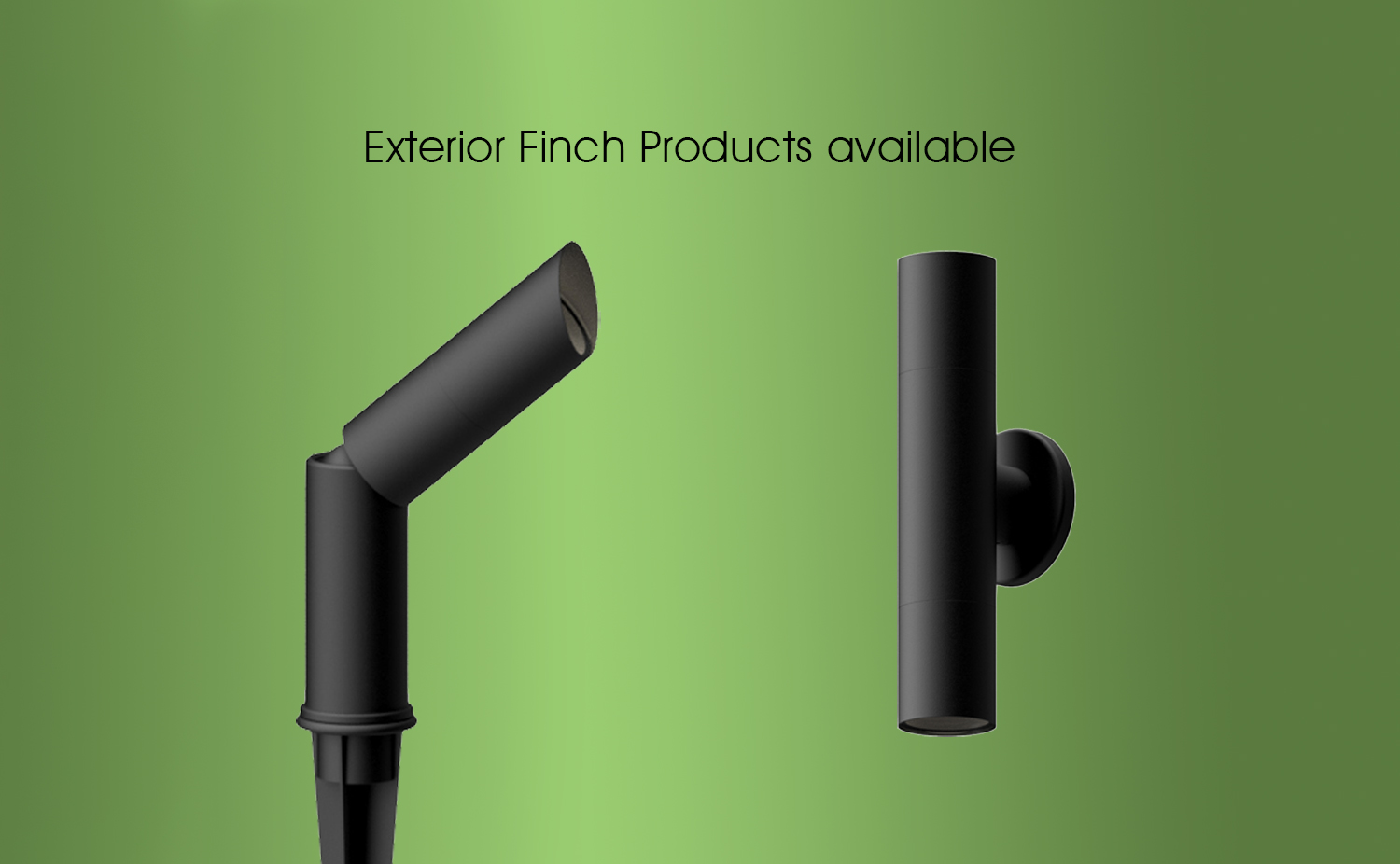

Available Exterior Finch Products
Finch Exterior Wall Mount Fixtures click here
Finch Exterior Ground Mount Fixture click here





Features & Benefits

Wattage

Direct: 10W max
Direct/Indirect: 16W total max

Lumen Output

Direct: 927 lm max
Direct/Indirect: 1574 lm max

Color Temp (CCT)

2700K , 3000K , 3500K , 4000K

Color Rendering Index (CRI)

80+ , 90+

Technology

Fixture Modification Request (EDR)

Content & Downloads

Product
Technology
Aperture Size
Trim / Trimless
Wattage
Delivered Lumens
SPEC Sheets
IES Files
REVIT Files
Install Sheets
Finch Wall Mount Direct or Indirect
Technology
Aperture Size1"
Trim / TrimlessN / N
Wattage10
Delivered Lumens927 max
INSTALL Sheets
REVIT Files
Finch Wall Mount Direct/Indirect
Technology
Aperture Size1"
Trim / TrimlessN / N
Wattage16
Delivered Lumens1574 max
INSTALL Sheets
REVIT Files
