Central Base Station
Central Base Station

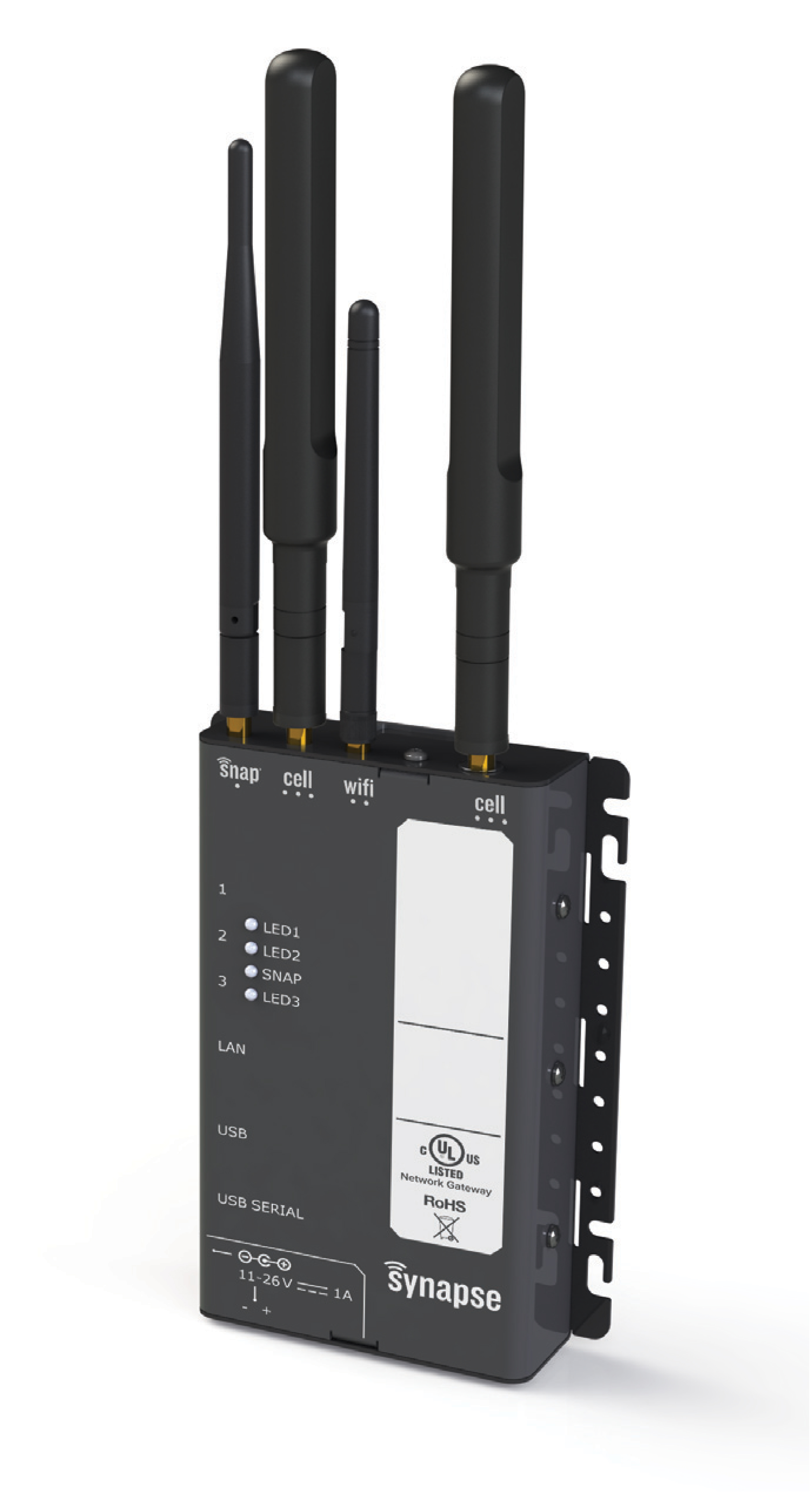

SimplySNAP On-Site Controller:
The SS450-002 site controller serves as the heart of your lighting solution, allowing local control without the internet using the Synapse SimplySNAP solution. SimplySNAP is a wireless, on-site control solution for monitoring and controlling outdoor and indoor lights via a SNAP mesh network. SimplySNAP provides the flexibility to manage your lighting, your way, with system setup and configuration through a mobile-friendly Wi-Fi interface. The system stores power data, zones, alarms, behaviors, and critical events locally for maintenance and troubleshooting; and provides municipal compliance via daily schedules, sensor controlled behaviors, and multiple dimming levels. With programmable schedules and easy setup, SimplySNAP is the perfect solution for remote sites or where internet is not desired. You just configure it and it runs.

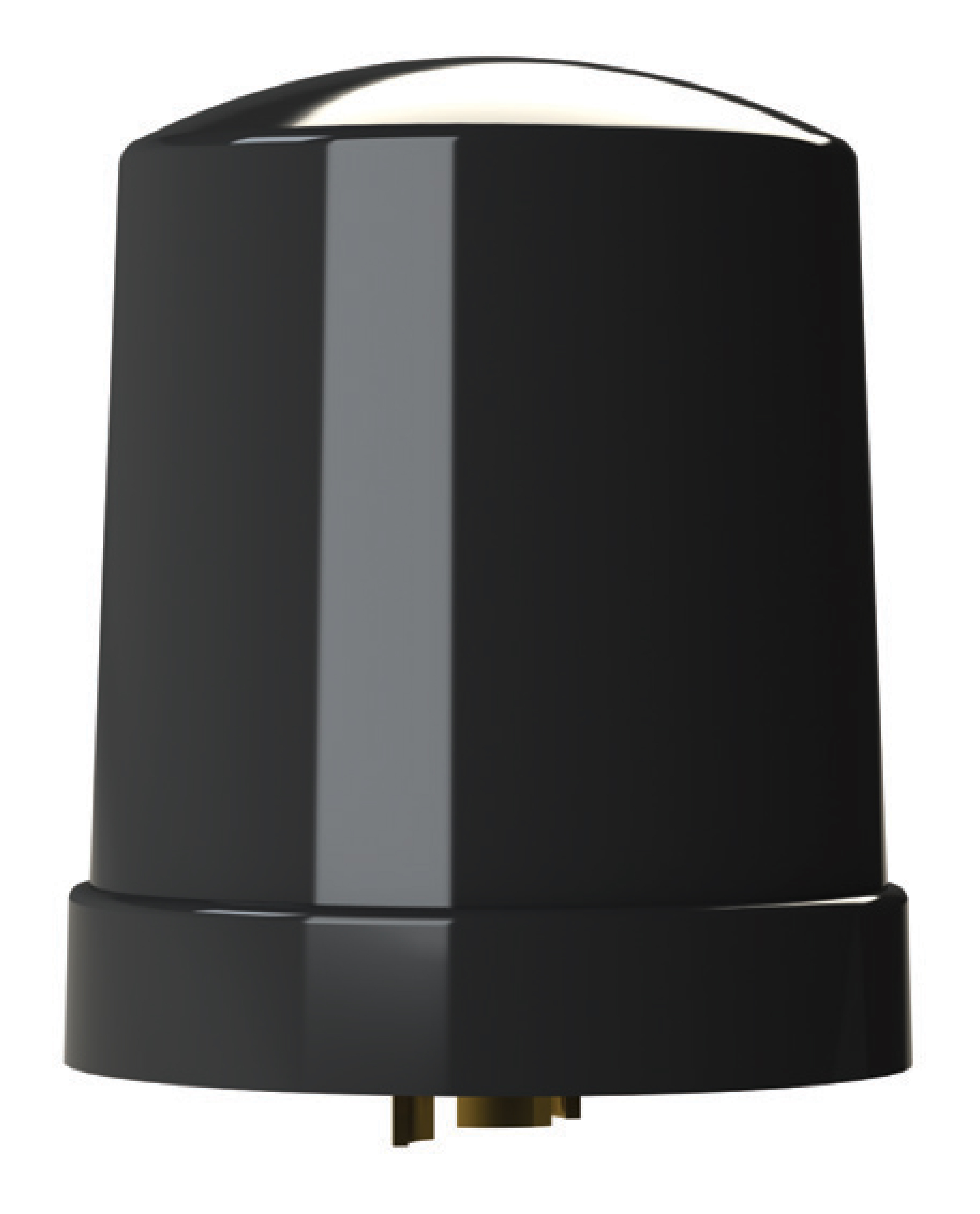

Twist Lock Lighting Controller:
The SS7P-1 is an intelligent wireless lighting controller that provides light monitoring and control with utility-grade power monitoring. Each SS7P-1 provides intelligent ON/OFF switching, dimming, control, and constant status monitoring of your lighting fixtures.

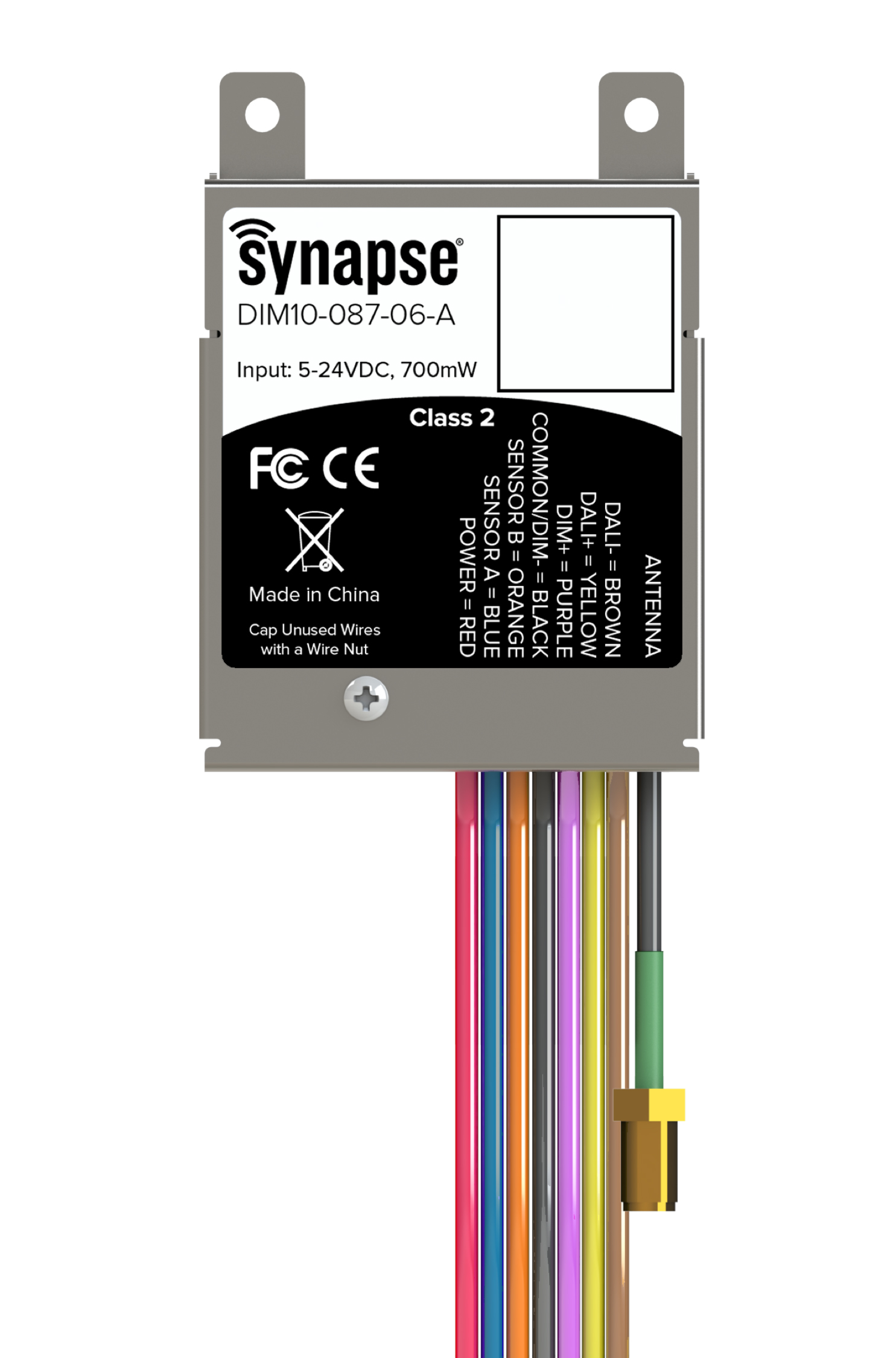

Embedded Wireless Lighting Controller
The embedded wireless controller opens up an exciting integration path for LED fixtures. Its smaller size and lower cost point makes this DC-powered wireless controller versatile enough to be embedded in nearly any medium to high wattage LED fixture. Pairing with a SimplySNAP Site Controller makes it easy for your customer to comply with ASHRAE, Title 24, and other energy requirements today and in the future.

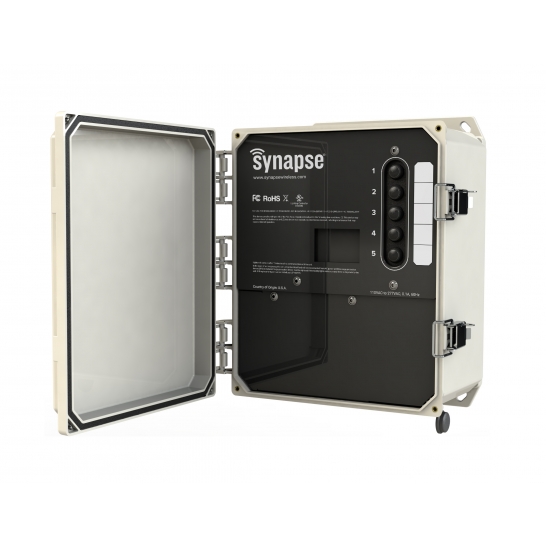

Central Base Station
The Central Base Station (CBS) is a SimplySNAP SS450 site controller installed in a NEMA 4X enclosure with local programmable push buttons to manually activate up to 25 Scenes (5 per button) across specific Zones or over the entire lighting installation.


Content & Downloads

Product
Technology
Aperture Size
Trim / Trimless
Wattage
Delivered Lumens
SPEC Sheets
IES Files
REVIT Files
Install Sheets
SimplySNAP On-Site Controller
Technology
Aperture Size-
Trim / TrimlessN / N
Wattage-
Delivered Lumens-
IES Files
INSTALL Sheets
REVIT Files
SPEC Sheets
Twist Lock Lighting Controller
Technology
Aperture Size-
Trim / TrimlessN / N
Wattage-
Delivered Lumens-
IES Files
INSTALL Sheets
REVIT Files
SPEC Sheets
Wireless Lighting Controller
Technology
Aperture Size-
Trim / TrimlessN / N
Wattage-
Delivered Lumens-
IES Files
INSTALL Sheets
REVIT Files
SPEC Sheets
Central Base Station
Technology
Aperture Size-
Trim / TrimlessN / N
Wattage-
Delivered Lumens-
IES Files
INSTALL Sheets
REVIT Files
SPEC Sheets
