Avista Post Top

Avista Light Engine
Avista Light Engine

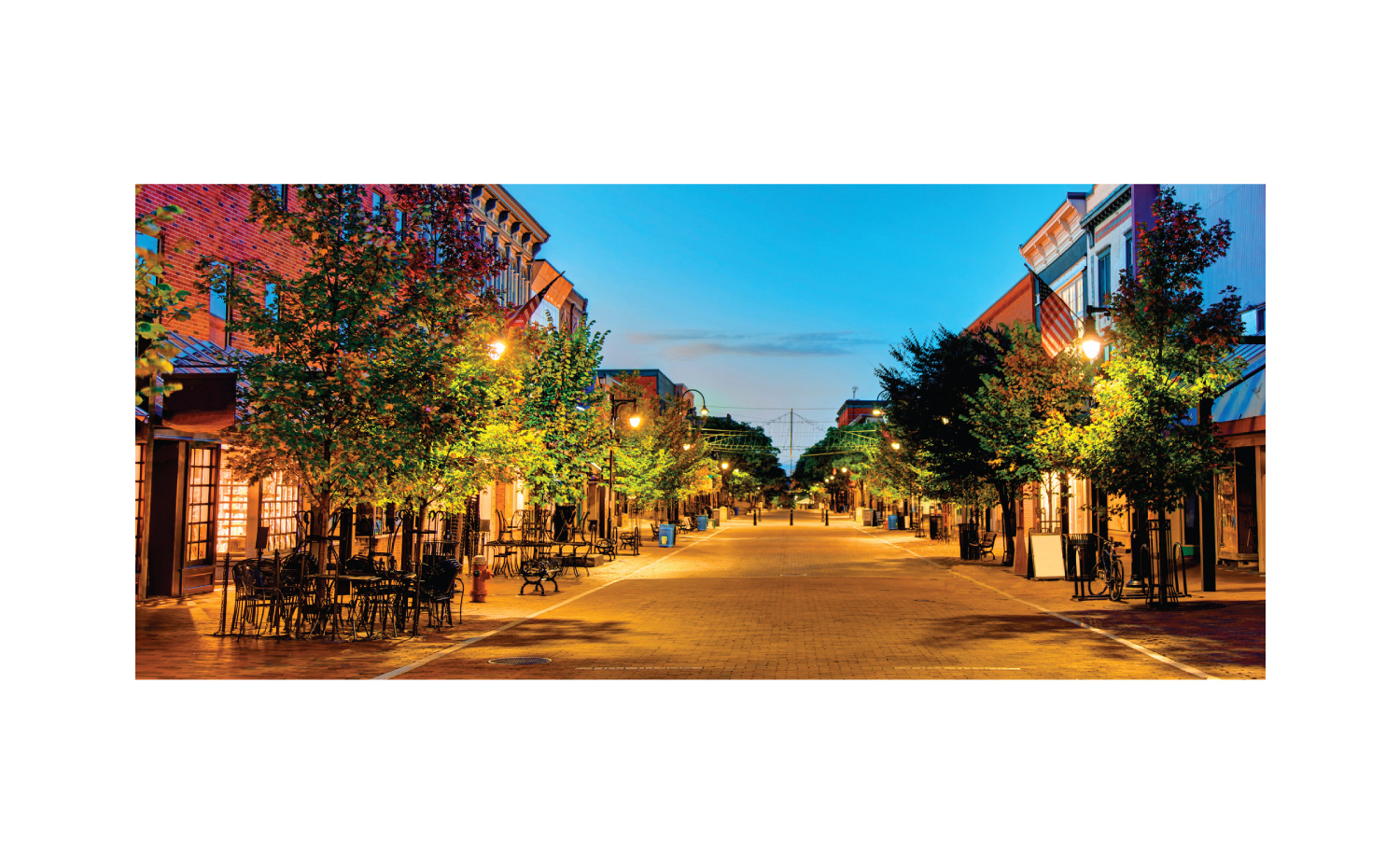

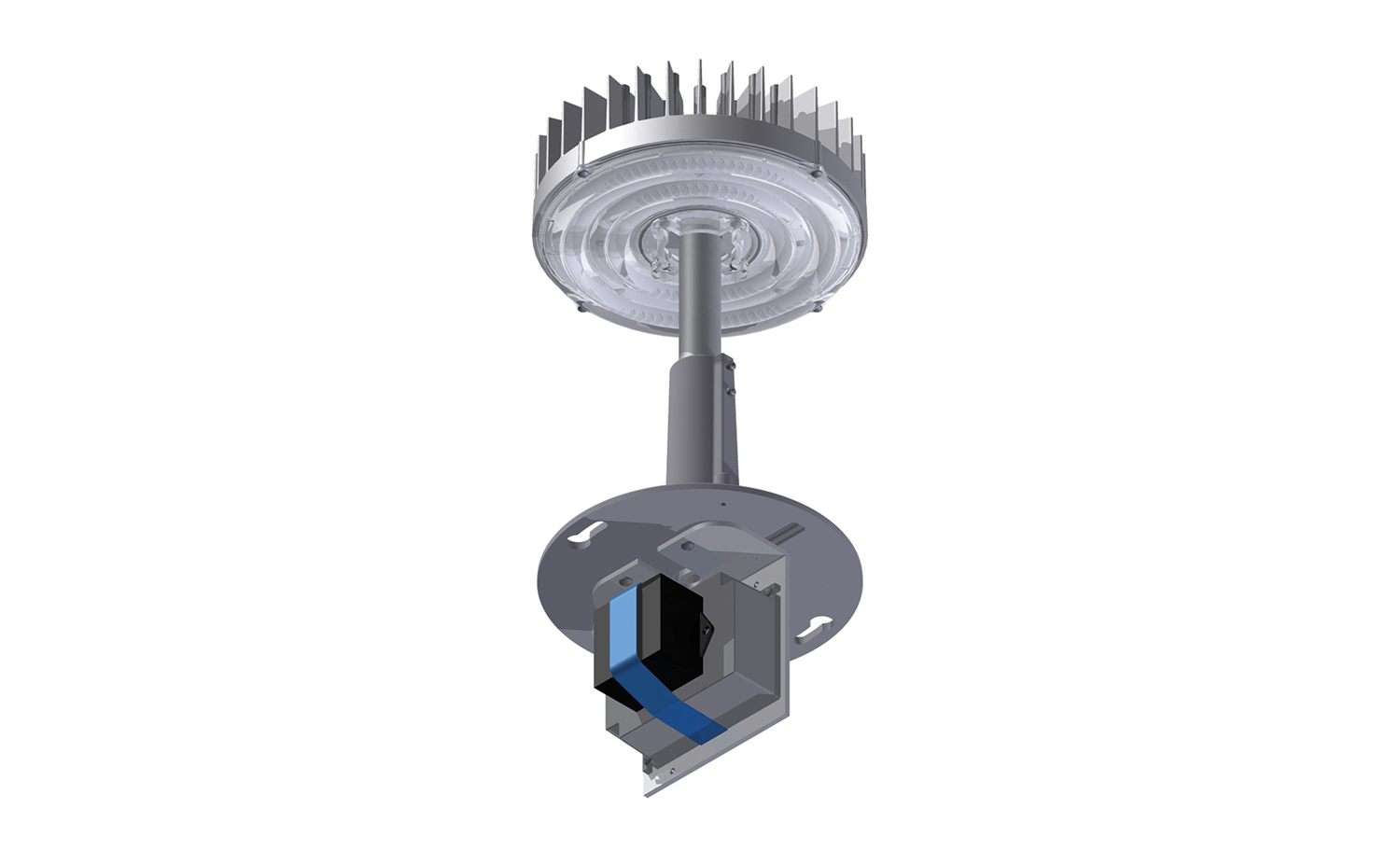

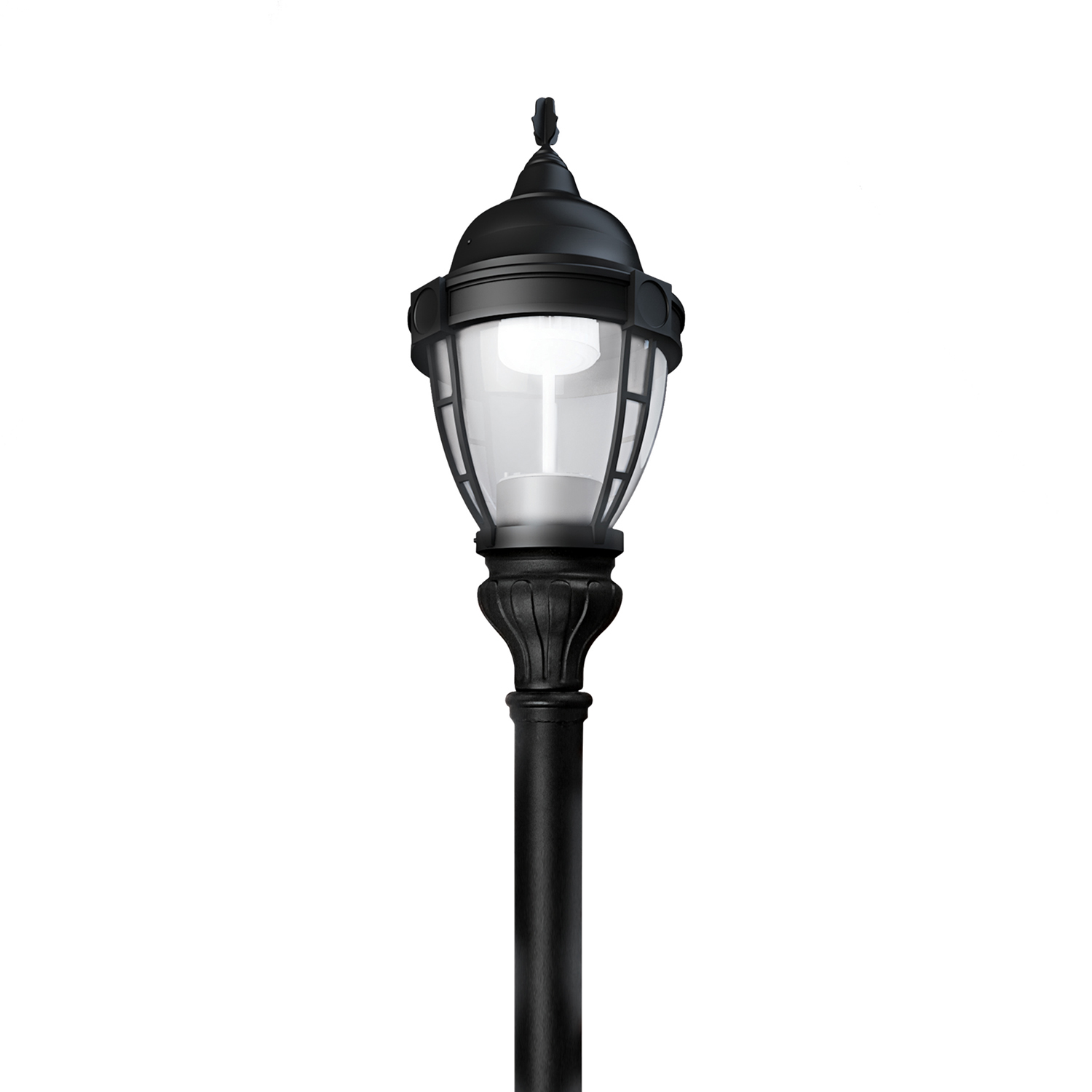

Avista is an advanced LED light engine designed to retrofit traditional post top luminaires or pendant style fixtures.  It is unique, with a completely sealed LED optical chamber, and a height adjustable stem which allows you to position the light source exactly where you want it for maximum performance.  A selection of mounting options and custom adaptor plates allows this unit to retrofit the vast majority of decorative post top fixtures in the market. Available CCT options include the most popular in decorative outdoor lighting (2700K, 3000K and 4000K) as well as a new 1900K (Nightscape Technology) that limits blue light content to less than 2%.

Features & Benefits

Wattage

86 max

Lumen Output

10,943 max

Color Temp (CCT)

1900K , 2700K , 3000K , 4000K

Fixture Modification Request (EDR)

Content & Downloads

Product
Technology
Aperture Size
Trim / Trimless
Wattage
Delivered Lumens
SPEC Sheets
IES Files
REVIT Files
Install Sheets
AVI-G3
Technology
Aperture Size-
Trim / TrimlessN / N
Wattage30, 44, 60, 86
Delivered Lumens10,943 max
INSTALL Sheets
REVIT Files
SPEC Sheets
AVI2
Technology
Aperture Size-
Trim / TrimlessN / N
Wattage27, 38, 68
Delivered Lumens7,500 max
INSTALL Sheets
REVIT Files
