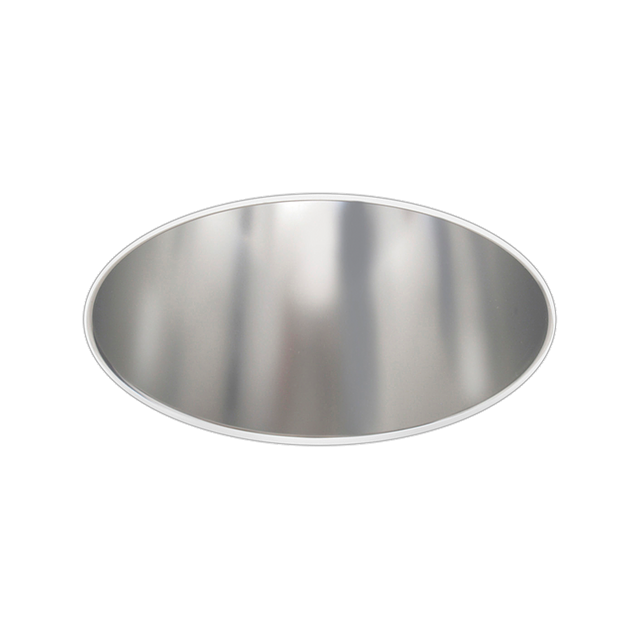

Evoke 4.75" Round Shallow Trim
E475RDS-TL.pngEvoke 4.75" Round Shallow Trim
Recessed Round Open Downlight
The Evoke® 4.75 Downlight features the fit, finish and attention to detail of the existing Evoke line that you've loved since its introduction in 2006. With the current advancements in lighting technology Evoke 4.75" delivers the performance, energy savings and color you expect from a spec-grade LED downlight. Suitable for a variety of lighting schemes featuring general, accent and display applications, Evoke 4.75" gives architects and lighting designers the flexibility to complete sustainable lighting designs. Impressive performance, high lumen delivery, consistent color. Round and Square trim available.
• Ideal for retail, commercial and hospitality ambient lighting
• Spec-grade LED downlight with high lumen output and consistent color for sustainable lighting design
• Multiple wattage, beam spread, and color temperature options
• Durable construction, available in trimmed and trimless for various ceiling types
• Spec-grade LED downlight with high lumen output and consistent color for sustainable lighting design
• Multiple wattage, beam spread, and color temperature options
• Durable construction, available in trimmed and trimless for various ceiling types
Aperture
- 4
CCT
- 2200K
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 80
- 90
Dimming Protocol
- 0-10 V
- DALI
- ELV
- Forward Phase
- Lutron EcoSystem
- Reverse Phase
- Triac
Dimming Range
- 1%
- 5%
Lamp Source
- LED
Listings
- CSA
- UL
Lumens
- 2104
Materials
- Aluminum
- Die-Cast Aluminum
- Steel
Ratings & Compliance
- Assembled in America
- CCEA
- Chicago Plenum
- Damp
- Interior
- JA8
- Title 24
- Wet
Shape
- Round
Trim Finish
- Matte Black
- Matte White
- Semi-Diffuse
Trim Type
- Shallow
Voltage
- 120 V
- 277 V
Warranty
- 5 yr
Watts
- 13
- 16
- 21
- 29
Technology
- Color Rendering
- Comfort
- Control
The Evoke® 4.75 Downlight features the fit, finish and attention to detail of the existing Evoke line that you've loved since its introduction in 2006. With the current advancements in lighting technology Evoke 4.75" delivers the performance, energy savings and color you expect from a spec-grade LED downlight. Suitable for a variety of lighting schemes featuring general, accent and display applications, Evoke 4.75" gives architects and lighting designers the flexibility to complete sustainable lighting designs. Impressive performance, high lumen delivery, consistent color. Round and Square trim available.
Resources
• Ideal for retail, commercial and hospitality ambient lighting
• Spec-grade LED downlight with high lumen output and consistent color for sustainable lighting design
• Multiple wattage, beam spread, and color temperature options
• Durable construction, available in trimmed and trimless for various ceiling types
• Spec-grade LED downlight with high lumen output and consistent color for sustainable lighting design
• Multiple wattage, beam spread, and color temperature options
• Durable construction, available in trimmed and trimless for various ceiling types
Aperture
- 4
CCT
- 2200K
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 80
- 90
Dimming Protocol
- 0-10 V
- DALI
- ELV
- Forward Phase
- Lutron EcoSystem
- Reverse Phase
- Triac
Dimming Range
- 1%
- 5%
Lamp Source
- LED
Listings
- CSA
- UL
Lumens
- 2104
Materials
- Aluminum
- Die-Cast Aluminum
- Steel
Ratings & Compliance
- Assembled in America
- CCEA
- Chicago Plenum
- Damp
- Interior
- JA8
- Title 24
- Wet
Shape
- Round
Trim Finish
- Matte Black
- Matte White
- Semi-Diffuse
Trim Type
- Shallow
Voltage
- 120 V
- 277 V
Warranty
- 5 yr
Watts
- 13
- 16
- 21
- 29
Technology
- Color Rendering
- Comfort
- Control
Similar Products
Hornet 2.5" Round Shallow Trim Downlight
Recessed Round Downlight
Comfort meets performance with our Hornet 2.5″ downlight family.
Hornet 3.5" Square Adjustable
Recessed Square Downlight
The Hornet® family of downlights offers high performance in a compact 3.5" size.
Stadia 8"
Architectural LED Downlight
Stadia® is a collection of architectural decorative downlights that offers designers a new way to add visual interest in a space while providing soft, uniform ambient lighting.
Hornet 3.5" Round Downlight
Recessed Round Downlight
The Hornet® family of downlights offers high performance in a compact 3.5" size.
Solace 3" Round Pinhole Adjustable
Shallow Round Downlight
Solace 3” Downlights are the complete downlight family for any ceiling surface and low plenum ceiling. Round or Square apertures, available as downlight, adjustable or wallwash.
View All Similar Products
Interior Collection
Linea 1.5" Direct/Indirect
Architectural Pendant Luminaire
Linea 1.5" drives your design scenario, seamlessly. Streamlined and flexible, these architectural LED pendants provide the freedom to create truly dynamic spaces.

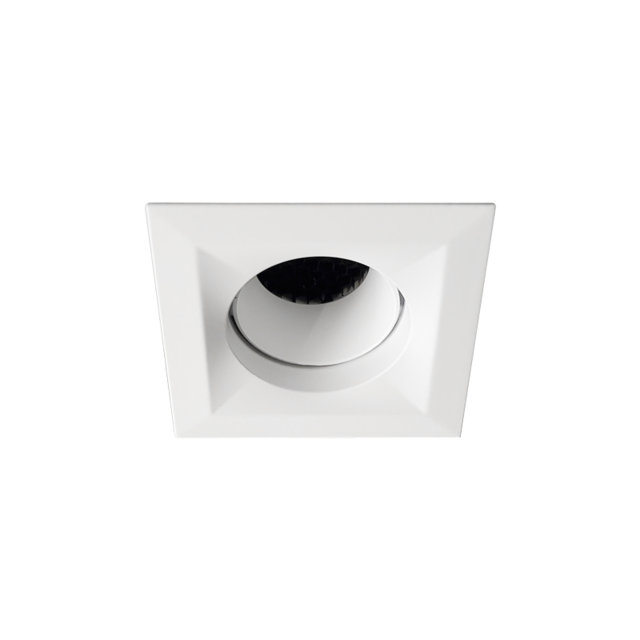

Finch 1" Square Adjustable
