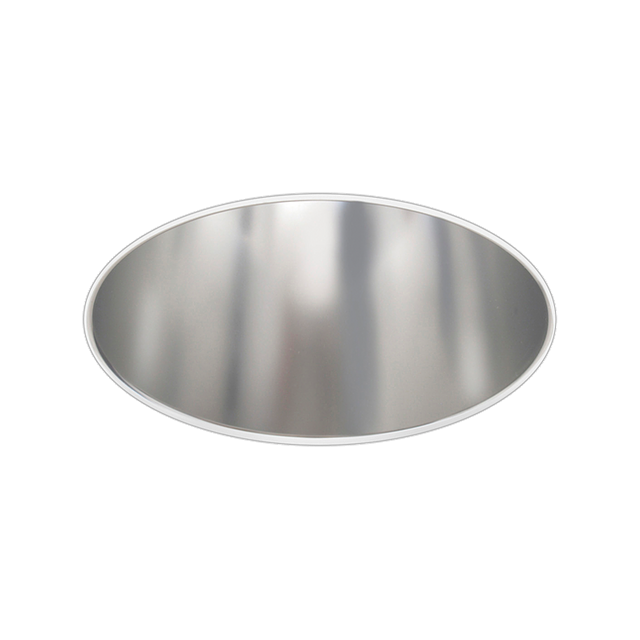

Evoke 4.75" Round Downlight
E475RD-TL.pngEvoke 4.75" Round Downlight
Recessed Round Open Downlight
The Evoke® 4.75 Downlight features the fit, finish and attention to detail of the existing Evoke line that you've loved since its introduction in 2006. With the current advancements in lighting technology Evoke 4.75" delivers the performance, energy savings and color you expect from a spec-grade LED downlight. Suitable for a variety of lighting schemes featuring general, accent and display applications, Evoke 4.75" gives architects and lighting designers the flexibility to complete sustainable lighting designs. Impressive performance, high lumen delivery, consistent color. Round and Square trim available.
Model: E4.75, E4.75RD, E4.75RDS
Model: E4.75, E4.75RD, E4.75RDS
- Ideal for retail, commercial and hospitality ambient lighting
- Spec-grade LED downlight with high lumen output and consistent color for sustainable lighting design
- Multiple wattage, beam spread, and color temperature options
- Durable construction, available in trimmed and trimless for various ceiling types
Aperture
- 4.75
CCT
- 2200K
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 80
- 90
Dimming Protocol
- 0-10 V
- DALI
- ELV
- Forward Phase
- Lutron EcoSystem
- Reverse Phase
- Triac
Dimming Range
- 1%
- 5%
Distribution
- Flood
- Spot
- Very Wide Flood
- Wide Flood
Dynamic LED Color
- Class A (CRI >80 & GAI >80)
Efficacy
- 73.1
Installation Type
- New Construction
Lamp Source
- LED
Listings
- CE
- CSA
Lumens
- 2104
Materials
- Aluminum
- Die-Cast Aluminum
- Steel
Emergency Options
- Emergency Battery Backup
Ratings & Compliance
- Assembled in America
- CCEA
- Chicago Plenum
- Damp
- IC Rated
- Interior
- JA8
- Title 24
- Wet
Shape
- Round
Trim Finish
- Matte Black
- Matte White
- Semi-Diffuse
Trim Type
- Downlight
Voltage
- 120 V
- 277 V
- Multi-Volt
Warranty
- 5 yr
Watts
- 13
- 16
- 21
- 29
Technology
- Color Rendering
- Comfort
- Control
The Evoke® 4.75 Downlight features the fit, finish and attention to detail of the existing Evoke line that you've loved since its introduction in 2006. With the current advancements in lighting technology Evoke 4.75" delivers the performance, energy savings and color you expect from a spec-grade LED downlight. Suitable for a variety of lighting schemes featuring general, accent and display applications, Evoke 4.75" gives architects and lighting designers the flexibility to complete sustainable lighting designs. Impressive performance, high lumen delivery, consistent color. Round and Square trim available.
Model: E4.75, E4.75RD, E4.75RDS
Model: E4.75, E4.75RD, E4.75RDS
Resources
- Ideal for retail, commercial and hospitality ambient lighting
- Spec-grade LED downlight with high lumen output and consistent color for sustainable lighting design
- Multiple wattage, beam spread, and color temperature options
- Durable construction, available in trimmed and trimless for various ceiling types
Aperture
- 4.75
CCT
- 2200K
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 80
- 90
Dimming Protocol
- 0-10 V
- DALI
- ELV
- Forward Phase
- Lutron EcoSystem
- Reverse Phase
- Triac
Dimming Range
- 1%
- 5%
Distribution
- Flood
- Spot
- Very Wide Flood
- Wide Flood
Dynamic LED Color
- Class A (CRI >80 & GAI >80)
Efficacy
- 73.1
Installation Type
- New Construction
Lamp Source
- LED
Listings
- CE
- CSA
Lumens
- 2104
Materials
- Aluminum
- Die-Cast Aluminum
- Steel
Emergency Options
- Emergency Battery Backup
Ratings & Compliance
- Assembled in America
- CCEA
- Chicago Plenum
- Damp
- IC Rated
- Interior
- JA8
- Title 24
- Wet
Shape
- Round
Trim Finish
- Matte Black
- Matte White
- Semi-Diffuse
Trim Type
- Downlight
Voltage
- 120 V
- 277 V
- Multi-Volt
Warranty
- 5 yr
Watts
- 13
- 16
- 21
- 29
Technology
- Color Rendering
- Comfort
- Control
