Evoke 4.75" Square Adjustable Downlight

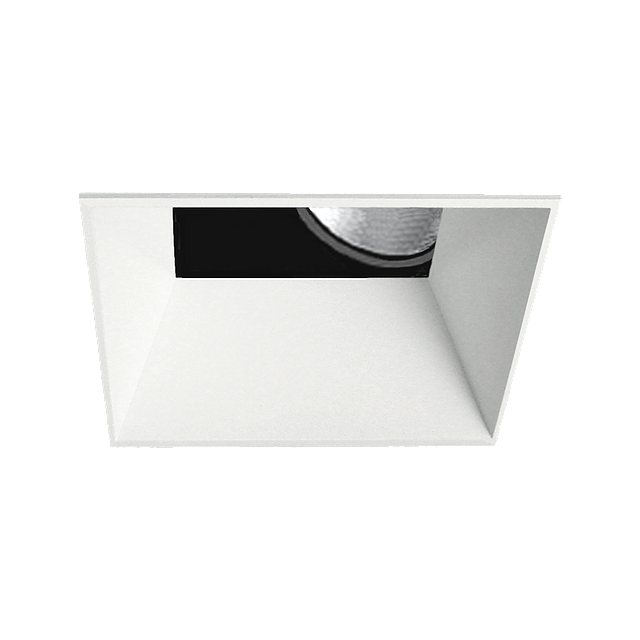

E475SA-C3-TL.pngEvoke 4.75" Square Adjustable Downlight
Recessed Square Adjustable Downlight
The Evoke® 4.75 Downlight features the fit, finish and attention to detail of the existing Evoke® line that you've loved since its introduction in 2006. With the current advancements in lighting technology Evoke® 4.75" delivers the performance, energy savings and color you expect from a spec-grade LED downlight. Suitable for a variety of lighting schemes featuring general, accent and display applications, Evoke® 4.75" gives architects and lighting designers the flexibility to complete sustainable lighting designs. Impressive performance, high lumen delivery, consistent color. Round and Square trim available.
• Ideal for retail and commercial accent and display lighting
• High performance with higher lumen delivery and consist color
• 0-35° tilt and 360° rotation for precise aiming
• Multiple wattage, beam spread, and color temperature options
• High performance with higher lumen delivery and consist color
• 0-35° tilt and 360° rotation for precise aiming
• Multiple wattage, beam spread, and color temperature options
Aperture
- 4
CCT
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 80
- 90
Dimming Protocol
- 0-10 V
- DALI
- ELV
- Forward Phase
- Lutron EcoSystem
- Reverse Phase
- Triac
Dimming Range
- 1%
- 5%
Efficacy
- 61.6
Lamp Source
- LED
Listings
- CSA
- UL
Lumens
- 1942
Materials
- Aluminum
- Steel
Ratings & Compliance
- Assembled in America
- CCEA
- Chicago Plenum
- Damp
- Wet
Shape
- Square
Trim Finish
- Matte Black
- Matte Silver
- Matte White
Trim Type
- Adjustable
Voltage
- 120 V
- 277 V
Warranty
- 5 yr
Watts
- 18
- 21
- 25
- 29
- 33
Technology
- Color Rendering
- Comfort
- Control
The Evoke® 4.75 Downlight features the fit, finish and attention to detail of the existing Evoke® line that you've loved since its introduction in 2006. With the current advancements in lighting technology Evoke® 4.75" delivers the performance, energy savings and color you expect from a spec-grade LED downlight. Suitable for a variety of lighting schemes featuring general, accent and display applications, Evoke® 4.75" gives architects and lighting designers the flexibility to complete sustainable lighting designs. Impressive performance, high lumen delivery, consistent color. Round and Square trim available.
Resources
Photometry
View All
(6)
• Ideal for retail and commercial accent and display lighting
• High performance with higher lumen delivery and consist color
• 0-35° tilt and 360° rotation for precise aiming
• Multiple wattage, beam spread, and color temperature options
• High performance with higher lumen delivery and consist color
• 0-35° tilt and 360° rotation for precise aiming
• Multiple wattage, beam spread, and color temperature options
Aperture
- 4
CCT
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 80
- 90
Dimming Protocol
- 0-10 V
- DALI
- ELV
- Forward Phase
- Lutron EcoSystem
- Reverse Phase
- Triac
Dimming Range
- 1%
- 5%
Efficacy
- 61.6
Lamp Source
- LED
Listings
- CSA
- UL
Lumens
- 1942
Materials
- Aluminum
- Steel
Ratings & Compliance
- Assembled in America
- CCEA
- Chicago Plenum
- Damp
- Wet
Shape
- Square
Trim Finish
- Matte Black
- Matte Silver
- Matte White
Trim Type
- Adjustable
Voltage
- 120 V
- 277 V
Warranty
- 5 yr
Watts
- 18
- 21
- 25
- 29
- 33
Technology
- Color Rendering
- Comfort
- Control
