SLOTS
SLOT-30.pngSLOTS

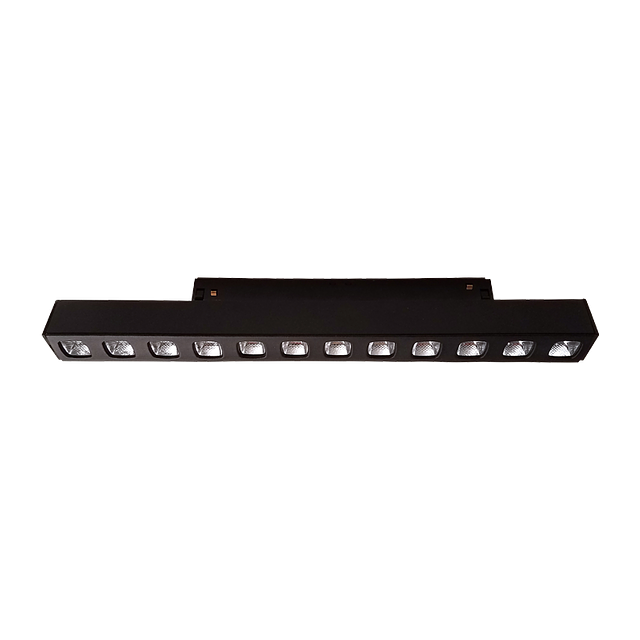

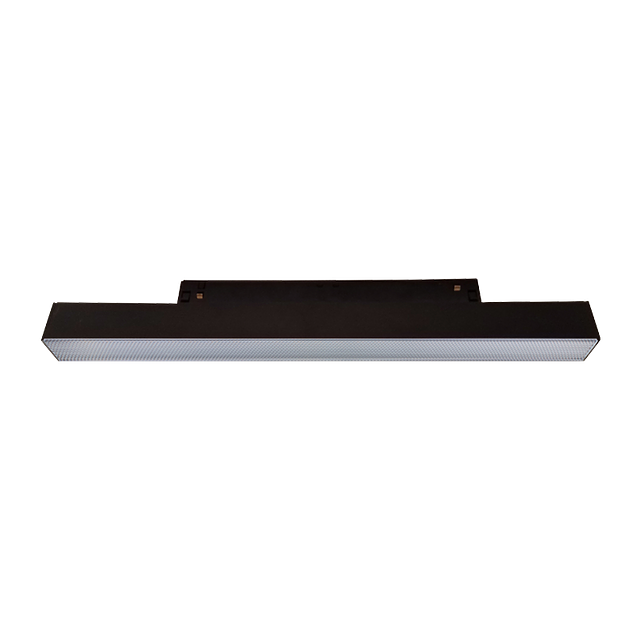

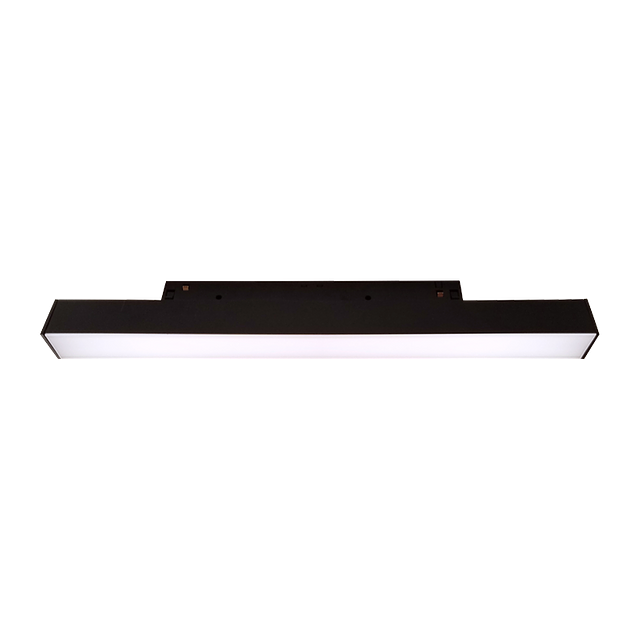

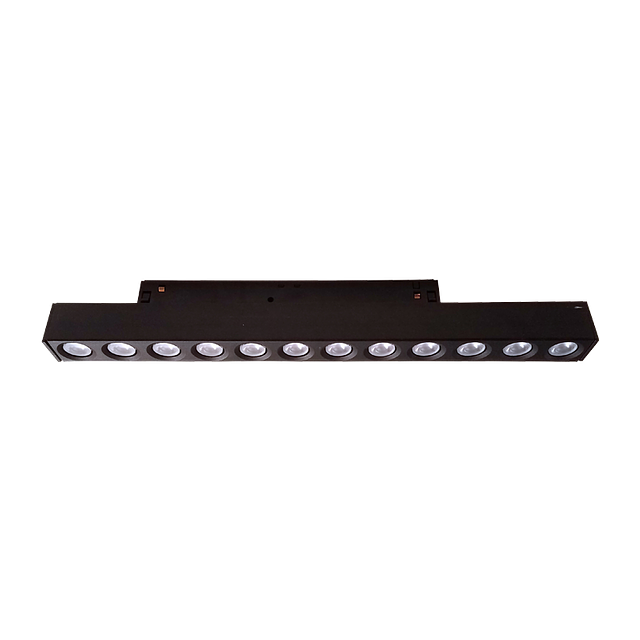

Slots and Dots Linear Light Modules
Slots & Dots, a 48V Track lighting system, connects all the dots for architects and lighting designers: color, comfort, controls and configurability. Slots & Dots is an easily configurable low voltage track lighting system that creates visual ambience for hospitality, residential, commercial and retail environments. Featuring surface, recessed or pendant mounting options, with easy light module in linear and accent that can be easily snapped in and out, as needed. Slots are made up of linear modules to create visual interest, wall grazing and glare free accent. Dots deliver focused beams of light from either an accent pendant or surface mounted accent that bring items into focus.
• Linear accent lighting modules for 48V track systemÂ
• Lighting modules easily snap in or out of track as neededÂ
• Create visual interest, wall grazing and glare free accentsÂ
• Various sizes, optics, and color temperatures
• Lighting modules easily snap in or out of track as neededÂ
• Create visual interest, wall grazing and glare free accentsÂ
• Various sizes, optics, and color temperatures
CCT
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 90
Dimming Protocol
- 0-10 V
- DALI
Dimming Range
- 1%
Lamp Source
- LED
Listings
- CSA
Lumens/Linear Ft.
- 527
Materials
- Acrylic
- Aluminum
Mounting
- Track
Ratings & Compliance
- Title 24
Voltage
- 48 V
Warranty
- 5 yr
Watts / Linear Ft.
- 6
Technology
- Color Rendering
- Comfort
Slots & Dots, a 48V Track lighting system, connects all the dots for architects and lighting designers: color, comfort, controls and configurability. Slots & Dots is an easily configurable low voltage track lighting system that creates visual ambience for hospitality, residential, commercial and retail environments. Featuring surface, recessed or pendant mounting options, with easy light module in linear and accent that can be easily snapped in and out, as needed. Slots are made up of linear modules to create visual interest, wall grazing and glare free accent. Dots deliver focused beams of light from either an accent pendant or surface mounted accent that bring items into focus.
Resources
Photometry
View All
(41)
• Linear accent lighting modules for 48V track systemÂ
• Lighting modules easily snap in or out of track as neededÂ
• Create visual interest, wall grazing and glare free accentsÂ
• Various sizes, optics, and color temperatures
• Lighting modules easily snap in or out of track as neededÂ
• Create visual interest, wall grazing and glare free accentsÂ
• Various sizes, optics, and color temperatures
CCT
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 90
Dimming Protocol
- 0-10 V
- DALI
Dimming Range
- 1%
Lamp Source
- LED
Listings
- CSA
Lumens/Linear Ft.
- 527
Materials
- Acrylic
- Aluminum
Mounting
- Track
Ratings & Compliance
- Title 24
Voltage
- 48 V
Warranty
- 5 yr
Watts / Linear Ft.
- 6
Technology
- Color Rendering
- Comfort
