Cylindrix III Mini (C3M) Semi-Recessed Multiples Retrofit

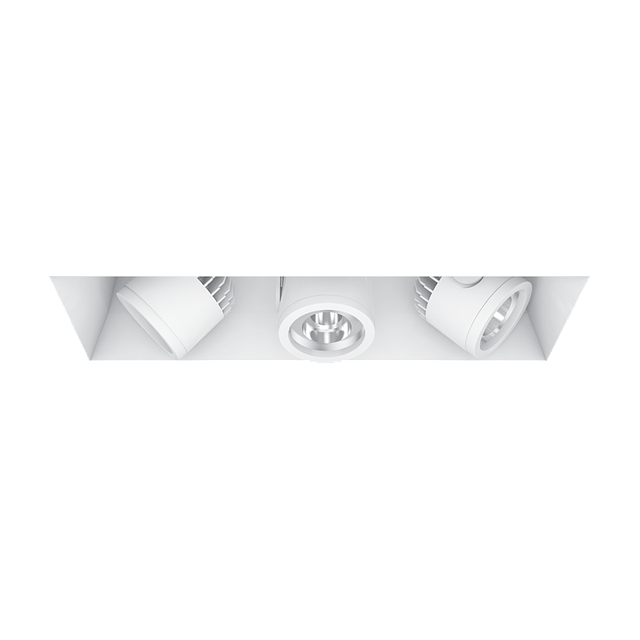

C3MR-3-TL.pngCylindrix III Mini (C3M) Semi-Recessed Multiples Retrofit
Semi-Recessed Multiples Accent & Display
This powerful, compact member of our Cylindrix family enhances your design aesthetics. The new Cylindrix III Mini Multiples consist of tiny, passively cooled LED heads, with full dimming capacity. They deliver brilliant colors and crispest whites, utilizing a patent pending, field changeable optical system. Available in 1, 2, 3 or 4 light configurations. These retrofits snap right into existing Amerlux housings of halogen or ceramic metal halide, and do not require professional installation. They provide provides a quick, easy, elegant way to completely renew your store’s look, and also to create better cost-efficiencies and savings.
• Quick and easy retrofit for existing Amerlux metal halide, and early LED housingsÂ
• Multiple wattage, color temperature, and beam spread optionsÂ
• Multiple head configurations (1–4 heads)Â
• Durable construction
• Multiple wattage, color temperature, and beam spread optionsÂ
• Multiple head configurations (1–4 heads)Â
• Durable construction
CCT
- 2200K
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 80
- 90
Color / Finish
- Black Texture
- Silver Texture
- White Texture
Dimming Protocol
- 0-10 V
- DALI
- ELV
- Forward Phase
- Lutron EcoSystem
- Reverse Phase
- Triac
- eldoLED
Dimming Range
- 1%
- 5%
Distribution
- Flood
- Narrow Flood
- Spot
- Very Narrow Flood
- Very Narrow Spot
- Wide Flood
Efficacy
- 105
Lamp Source
- LED
Listings
- CE
- CSA
- UL
Lumens
- 2125
Materials
- Aluminum
- Steel
Module Count
- 1
- 2
- 3
- 4
Ratings & Compliance
- Assembled in America
- Damp
- Interior
Voltage
- 120-277 V
- UNV
Warranty
- 3 yr
- 5 yr
Watts
- 15
- 18
- 21
Technology
- Color Rendering
- Comfort
- Control
This powerful, compact member of our Cylindrix family enhances your design aesthetics. The new Cylindrix III Mini Multiples consist of tiny, passively cooled LED heads, with full dimming capacity. They deliver brilliant colors and crispest whites, utilizing a patent pending, field changeable optical system. Available in 1, 2, 3 or 4 light configurations. These retrofits snap right into existing Amerlux housings of halogen or ceramic metal halide, and do not require professional installation. They provide provides a quick, easy, elegant way to completely renew your store’s look, and also to create better cost-efficiencies and savings.
Resources
• Quick and easy retrofit for existing Amerlux metal halide, and early LED housingsÂ
• Multiple wattage, color temperature, and beam spread optionsÂ
• Multiple head configurations (1–4 heads)Â
• Durable construction
• Multiple wattage, color temperature, and beam spread optionsÂ
• Multiple head configurations (1–4 heads)Â
• Durable construction
CCT
- 2200K
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 80
- 90
Color / Finish
- Black Texture
- Silver Texture
- White Texture
Dimming Protocol
- 0-10 V
- DALI
- ELV
- Forward Phase
- Lutron EcoSystem
- Reverse Phase
- Triac
- eldoLED
Dimming Range
- 1%
- 5%
Distribution
- Flood
- Narrow Flood
- Spot
- Very Narrow Flood
- Very Narrow Spot
- Wide Flood
Efficacy
- 105
Lamp Source
- LED
Listings
- CE
- CSA
- UL
Lumens
- 2125
Materials
- Aluminum
- Steel
Module Count
- 1
- 2
- 3
- 4
Ratings & Compliance
- Assembled in America
- Damp
- Interior
Voltage
- 120-277 V
- UNV
Warranty
- 3 yr
- 5 yr
Watts
- 15
- 18
- 21
Technology
- Color Rendering
- Comfort
- Control
