Linea 1.5 Family

Direct
Direct

Linea 1.5" drives your design scenario, seamlessly. Streamlined and flexible, these architectural LED pendants provide the freedom to create truly dynamic spaces. A synthesis of aesthetics, performance and energy efficiency, the Linea family delivers on its promises. Our Linea 1.5'' pendant proves when it comes to lighting, less really is more.

Products marked with PoE logo will be compatible for use with PoE, consult factory for compatible systems.

clean_purple-(1).png For ActiveCLEAN Linea products click here.

Features & Benefits

Wattage

I: 10W/ft max
D: 10W/ft max
DI: 20W/ft max

Lumen Output

I: 987/ft max
D: 923/ft max
DI: 1910/ft max

Color Temp (CCT)

2700K , 3000K , 3500K , 4000K

Color Rendering Index (CRI)

80+ , 90+

Technology

Fixture Modification Request (EDR)

Content & Downloads

Product
Technology
Aperture Size
Trim / Trimless
Wattage
Delivered Lumens
SPEC Sheets
IES Files
REVIT Files
Install Sheets

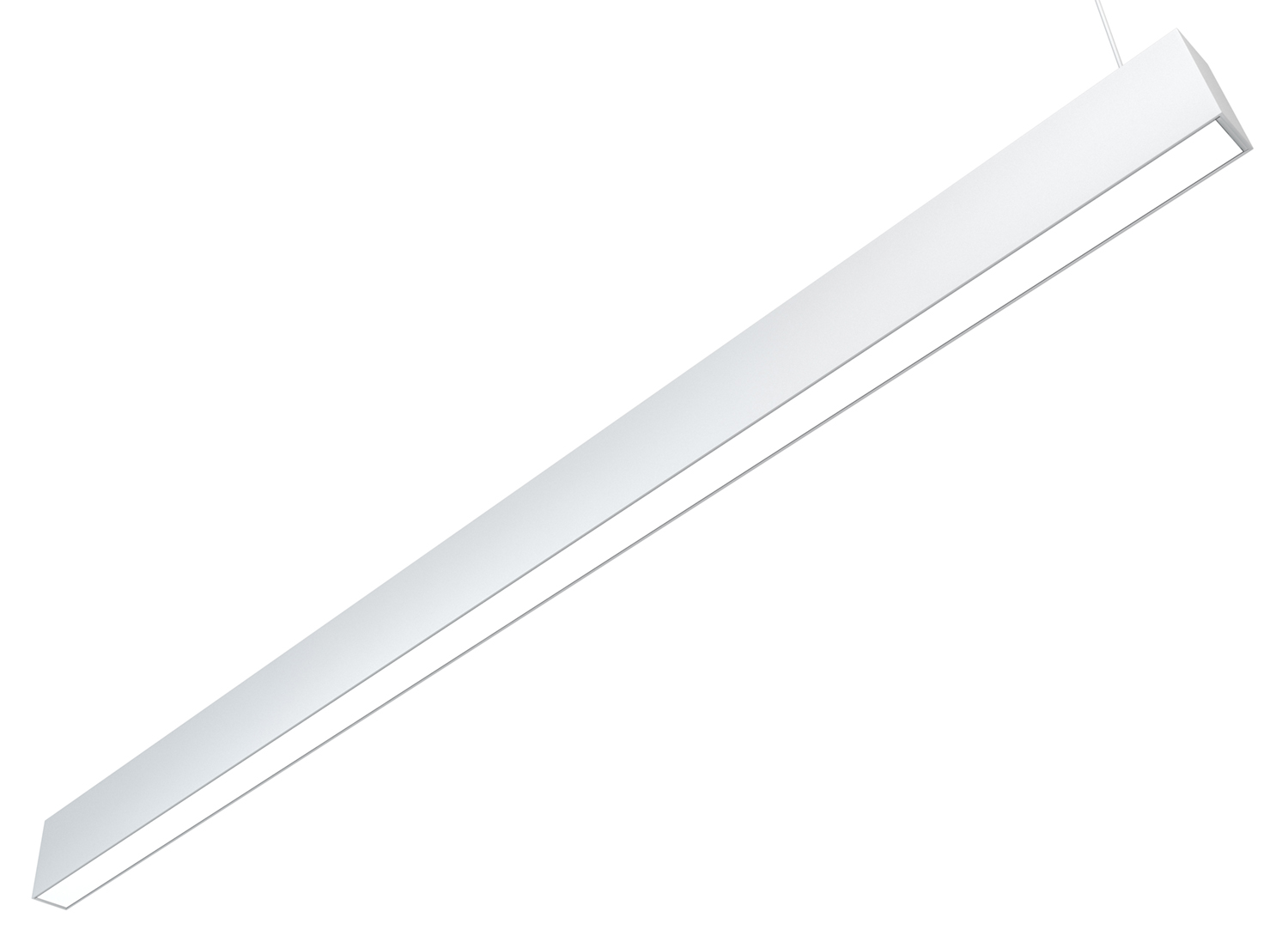

Direct/Indirect
Technology
Aperture Size1.5"
Trim / TrimlessN / N
Wattage20W/ft max
Delivered Lumens1910 lm/ft max
INSTALL Sheets
REVIT Files
SPEC Sheets

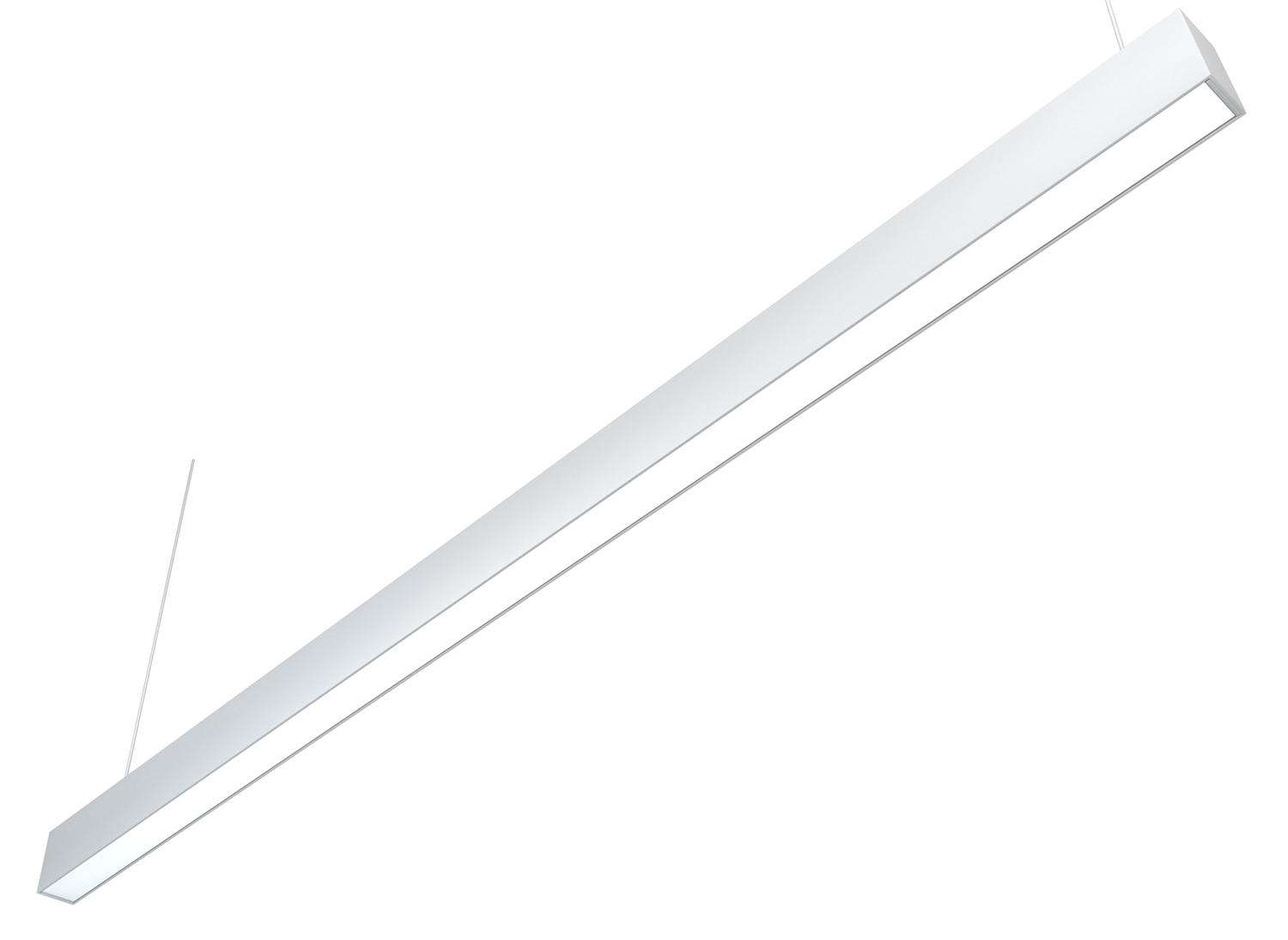

Direct
Technology
Aperture Size1.5"
Trim / TrimlessN / N
Wattage10W/ft max
Delivered Lumens923 lm/ft max
INSTALL Sheets
REVIT Files
SPEC Sheets

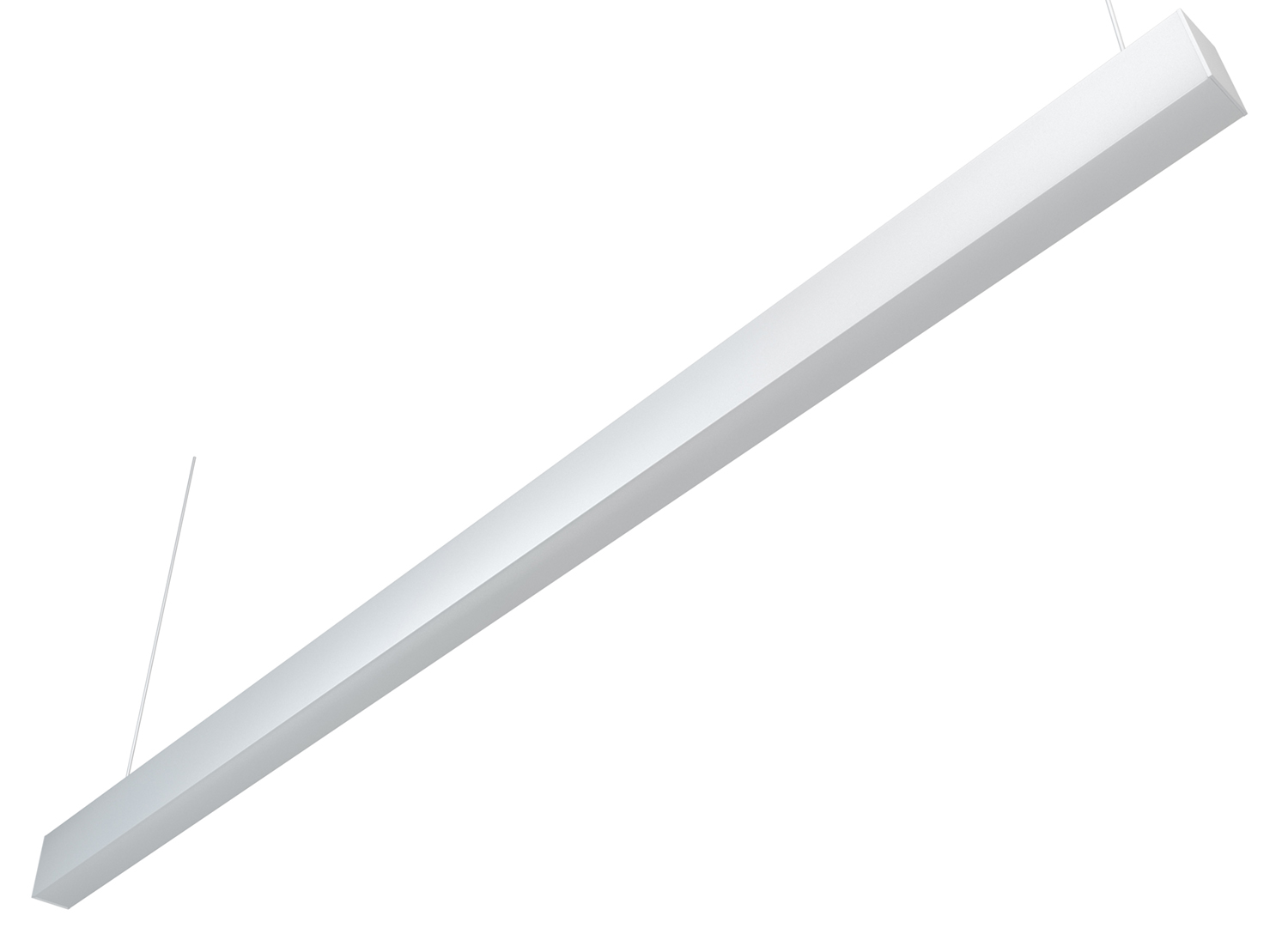

Indirect
Technology
Aperture Size1.5"
Trim / TrimlessN / N
Wattage10W/ft max
Delivered Lumens987 lm/ft max
REVIT Files
SPEC Sheets

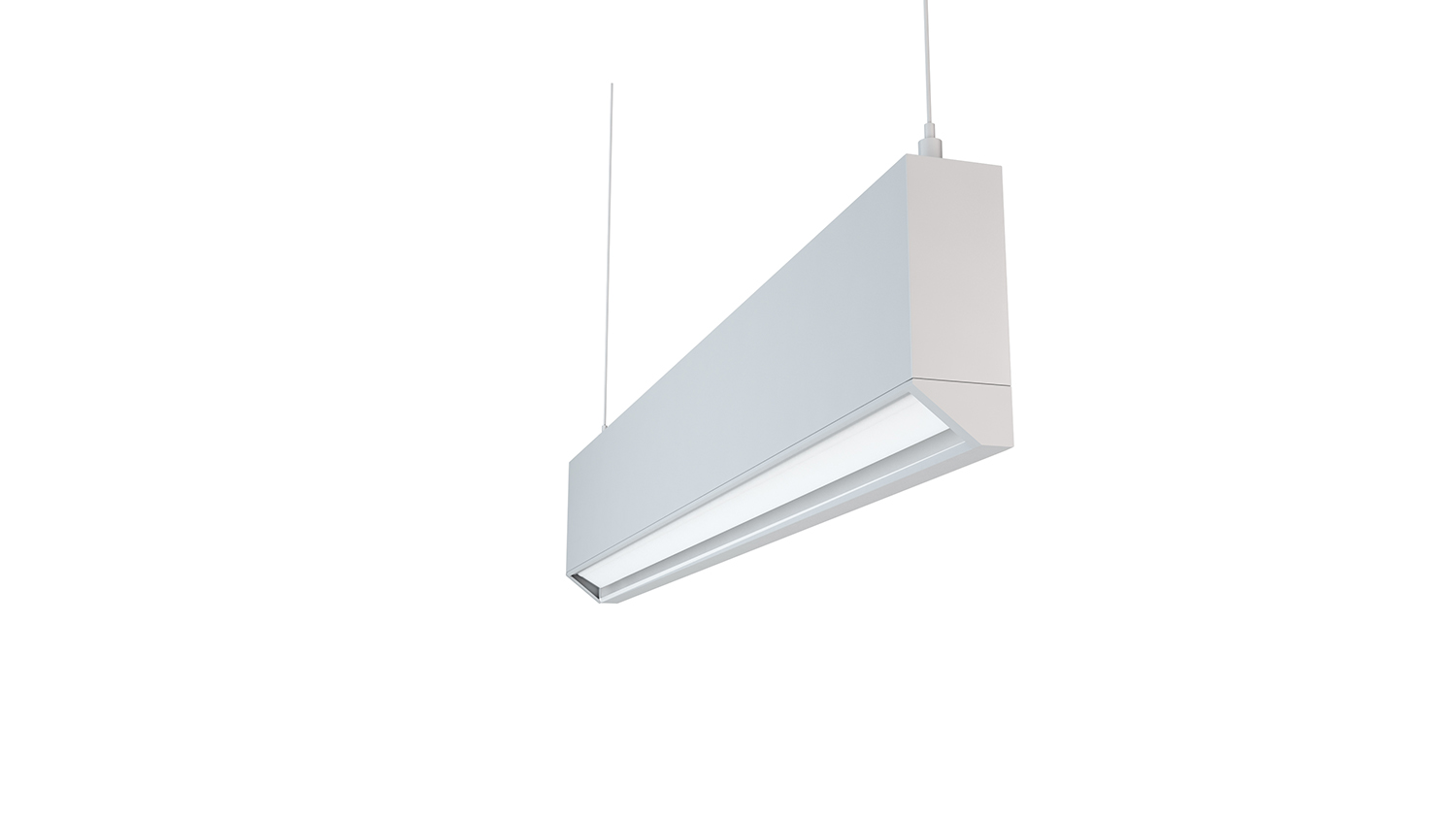

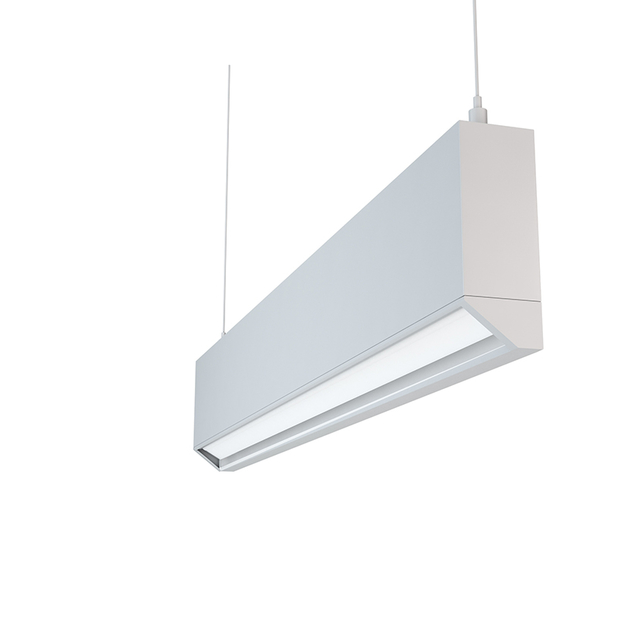

Direct Wall Wash
Technology
Aperture Size1.5"
Trim / TrimlessN / N
Wattage10W/ft max
Delivered Lumens639 lm/ft max
INSTALL Sheets
REVIT Files
SPEC Sheets

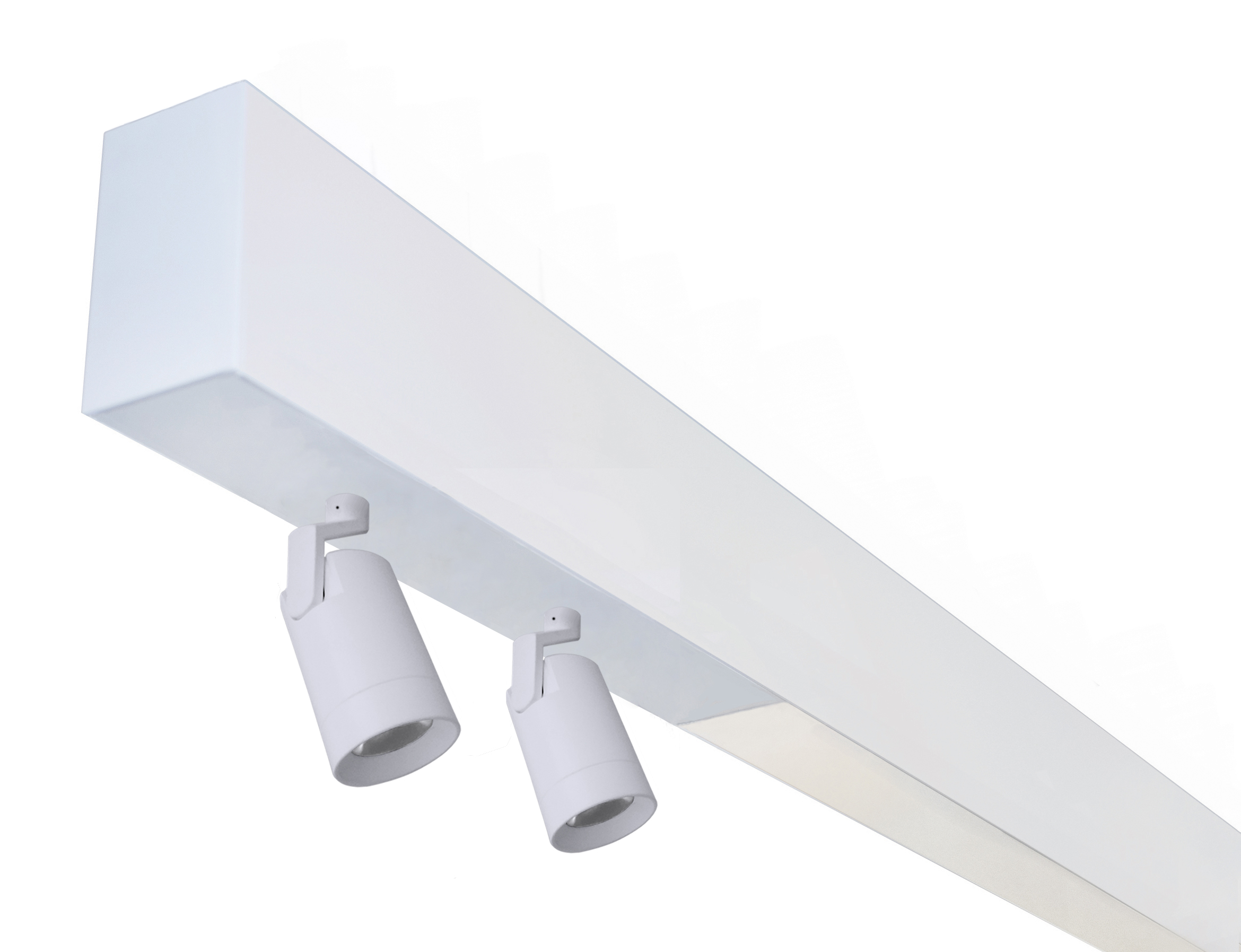

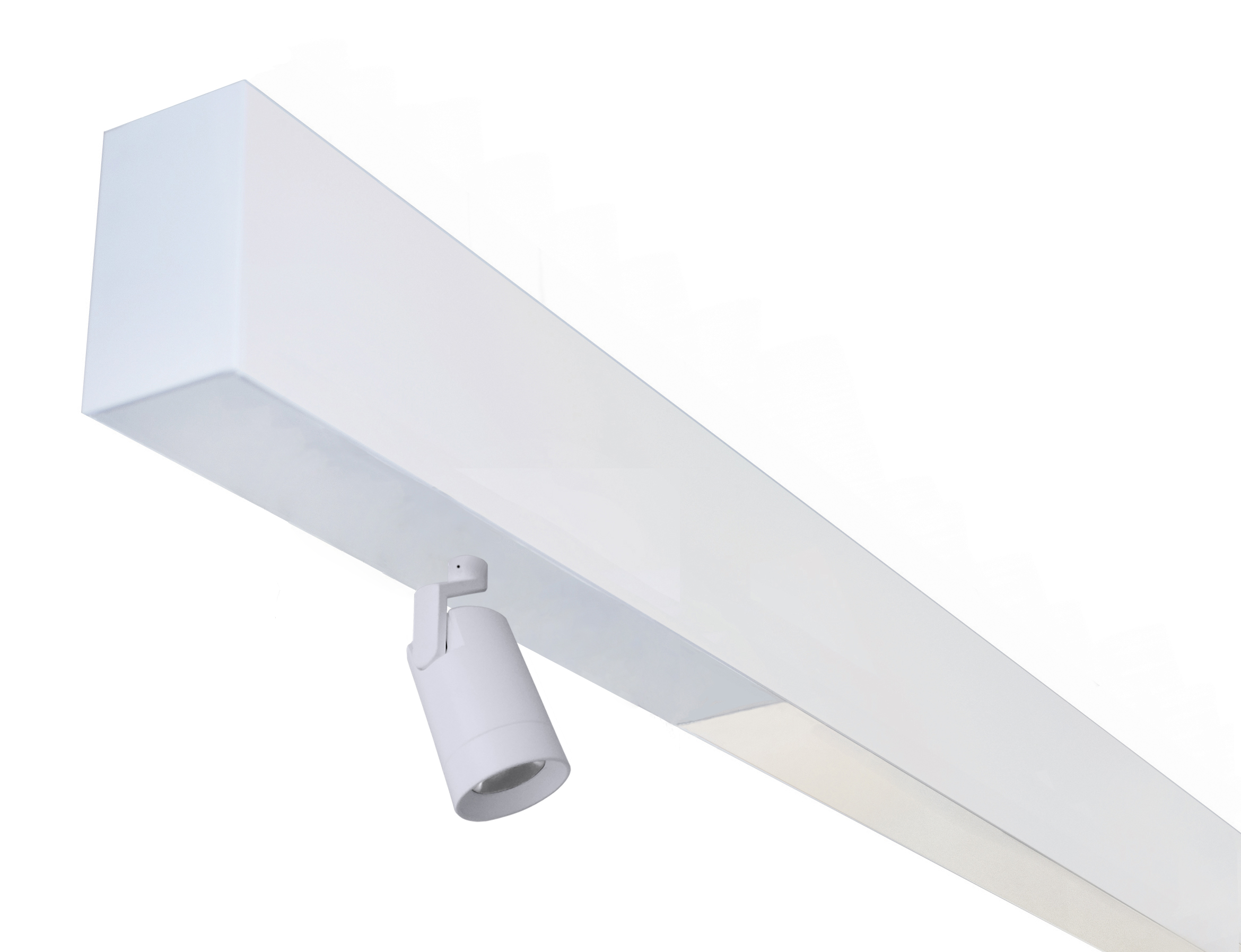

Direct with Adjustable Accents
Technology
Aperture Size1.5"
Trim / TrimlessN / N
WattageD: 10W/ft max
Accent: 7W
Delivered LumensD: 816 lm/ft max
Accent: 451 max
IES Files
INSTALL Sheets
REVIT Files
SPEC Sheets
Direct/Indirect with Adjustable Accents
Technology
Aperture Size1.5"
Trim / TrimlessN / N
WattageDI: 20W/ft max
Accent: 7W
Delivered LumensDI: 1746 lm/ft max
Accent: 451 max
IES Files
INSTALL Sheets
REVIT Files
