AO21 Utility Series
DUF37-AO21.pngAO21 Utility Series
Utility Roadway Luminaire

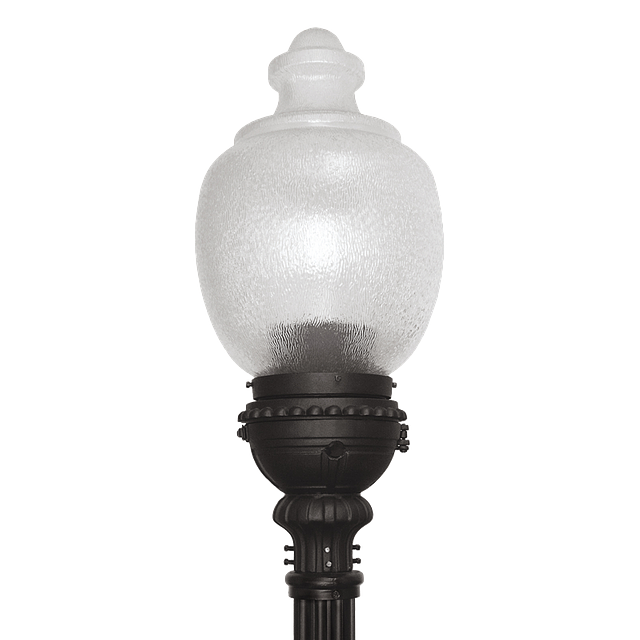

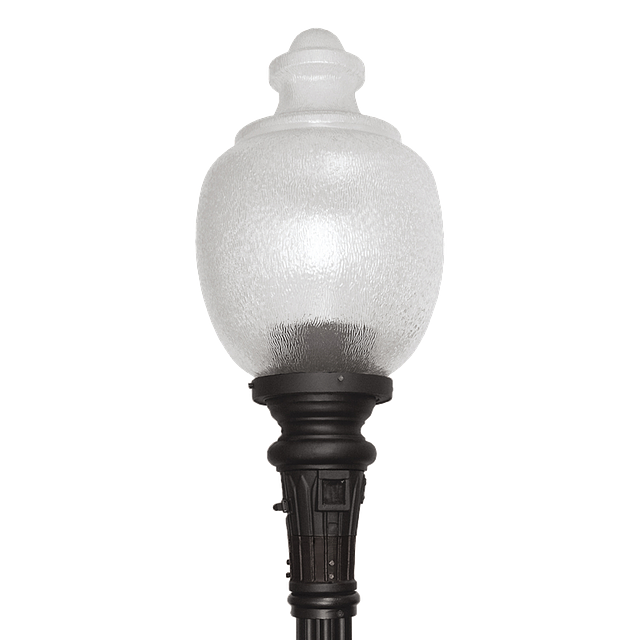

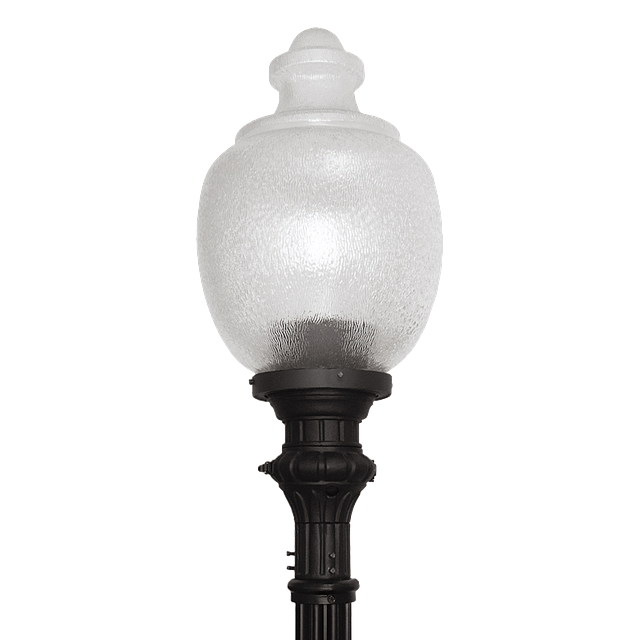

Decorative lighting for residential roadway and commercial property, where independent fixture control is desired. The AO21 Series consists of a decorative acorn combined with one of several styles of cast aluminum fitters. Powered by the Amerlux patented AVISTA® LED system with options for intensity, distribution and color.
• Traditional Acorn Style Utility Luminaire
• Textured Acrylic or Polycarbonate Lens Options
• Efficient LED Light Source
• Multiple CCT and Output Options
• Type III, IV and V Distribution Options
• Textured Acrylic or Polycarbonate Lens Options
• Efficient LED Light Source
• Multiple CCT and Output Options
• Type III, IV and V Distribution Options
CCT
- 1900K
- 2700K
- 3000K
- 4000K
CRI
- 52
- 70
- 80
Color / Finish
- Classic Bronze
- Custom
- Gloss Textured Black
- Gloss Textured Bronze
- Gloss Textured Green
- Green
- Satin Black
- Textured Black
Controls Options
- Photocell
Dimming Protocol
- 0-10 V
Distribution
- Type III
- Type IV
- Type V
Efficacy
- 143
Lamp Source
- LED
Listings
- ETL
Lumens
- 10943
Materials
- Acrylic
- Aluminum
- Polycarbonate
- Steel
Mounting
- Pole
Ratings & Compliance
- ARRA
- DLC
- Exterior
- Wet
Voltage
- 120-277 V
- UNV
Warranty
- 5 yr
Watts
- 30
- 44
- 60
- 86
Technology
- Color Rendering
- Comfort
- Control
Decorative lighting for residential roadway and commercial property, where independent fixture control is desired. The AO21 Series consists of a decorative acorn combined with one of several styles of cast aluminum fitters. Powered by the Amerlux patented AVISTA® LED system with options for intensity, distribution and color.
Resources
• Traditional Acorn Style Utility Luminaire
• Textured Acrylic or Polycarbonate Lens Options
• Efficient LED Light Source
• Multiple CCT and Output Options
• Type III, IV and V Distribution Options
• Textured Acrylic or Polycarbonate Lens Options
• Efficient LED Light Source
• Multiple CCT and Output Options
• Type III, IV and V Distribution Options
CCT
- 1900K
- 2700K
- 3000K
- 4000K
CRI
- 52
- 70
- 80
Color / Finish
- Classic Bronze
- Custom
- Gloss Textured Black
- Gloss Textured Bronze
- Gloss Textured Green
- Green
- Satin Black
- Textured Black
Controls Options
- Photocell
Dimming Protocol
- 0-10 V
Distribution
- Type III
- Type IV
- Type V
Efficacy
- 143
Lamp Source
- LED
Listings
- ETL
Lumens
- 10943
Materials
- Acrylic
- Aluminum
- Polycarbonate
- Steel
Mounting
- Pole
Ratings & Compliance
- ARRA
- DLC
- Exterior
- Wet
Voltage
- 120-277 V
- UNV
Warranty
- 5 yr
Watts
- 30
- 44
- 60
- 86
Technology
- Color Rendering
- Comfort
- Control
