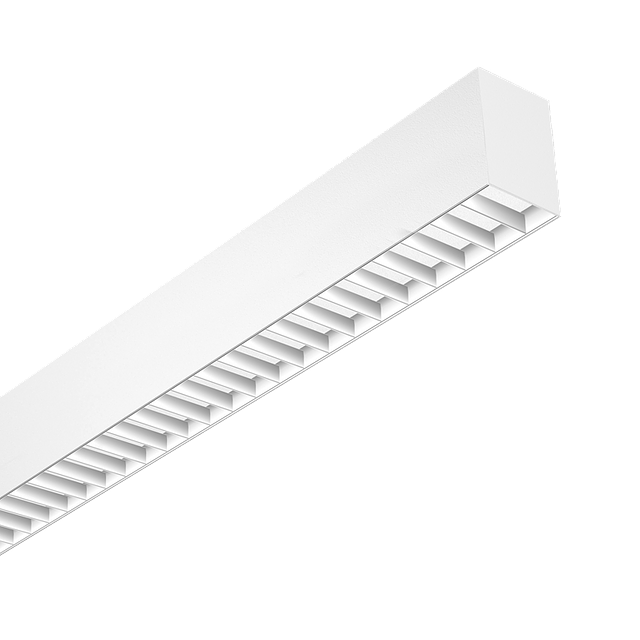

Linea 3.5" Direct
LIN3.5D-LVR.pngLinea 3.5" Direct
Architectural Pendant Luminaire
An architecturally-styled pendant for commercial and retail environments and engineered around the latest energy efficient LED, the Linea® 3.5" direct delivers 73 lumens per watt with only 5 watts/foot. Its 3.5" rectilinear profile extruded construction, flexible configurations, clean lines and uncompromising performance make the LIN3.5 the perfect pendant to light any space. Products marked with PoE logo will be compatible for use with PoE, consult factory for compatible systems.
• 3.5" profile that provides well-controlled ambient lighting
• Efficient LED performance, up to 1100 lm/ft
• Multiple optic, mounting, wattage, and color temperature options
• Ideal for open office, conference rooms, corridors or any indoor space where higher light levels of direct ambient lighting is required
• Efficient LED performance, up to 1100 lm/ft
• Multiple optic, mounting, wattage, and color temperature options
• Ideal for open office, conference rooms, corridors or any indoor space where higher light levels of direct ambient lighting is required
Aperture
- 3
CCT
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 80
- 90
Color / Finish
- Black Texture
- High Reflectance Matte White
- Silver Texture
Dimming Protocol
- 0-10 V
- DALI
- Lutron EcoSystem
Dimming Range
- 1%
Distribution
- Direct
Dynamic LED Color
- Tunable White
Efficacy
- 121.3
Lamp Source
- LED
Listings
- CSA
- UL
Lumens/Linear Ft.
- 1100
Materials
- Acrylic
- Aluminum
- Steel
Mounting
- Cable
- Pendant
- Surface
- Wall
Ratings & Compliance
- Assembled in America
- Damp
- Interior
Voltage
- 120 V
- 277 V
Warranty
- 5 yr
Watts / Linear Ft.
- 3
- 4
- 5
- 5
- 6
- 7
- 8
- 9
- 10
- 10
Technology
- Color Rendering
- Comfort
- Control
- Power over Ethernet
- Tunable White
An architecturally-styled pendant for commercial and retail environments and engineered around the latest energy efficient LED, the Linea® 3.5" direct delivers 73 lumens per watt with only 5 watts/foot. Its 3.5" rectilinear profile extruded construction, flexible configurations, clean lines and uncompromising performance make the LIN3.5 the perfect pendant to light any space. Products marked with PoE logo will be compatible for use with PoE, consult factory for compatible systems.
Resources
• 3.5" profile that provides well-controlled ambient lighting
• Efficient LED performance, up to 1100 lm/ft
• Multiple optic, mounting, wattage, and color temperature options
• Ideal for open office, conference rooms, corridors or any indoor space where higher light levels of direct ambient lighting is required
• Efficient LED performance, up to 1100 lm/ft
• Multiple optic, mounting, wattage, and color temperature options
• Ideal for open office, conference rooms, corridors or any indoor space where higher light levels of direct ambient lighting is required
Aperture
- 3
CCT
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 80
- 90
Color / Finish
- Black Texture
- High Reflectance Matte White
- Silver Texture
Dimming Protocol
- 0-10 V
- DALI
- Lutron EcoSystem
Dimming Range
- 1%
Distribution
- Direct
Dynamic LED Color
- Tunable White
Efficacy
- 121.3
Lamp Source
- LED
Listings
- CSA
- UL
Lumens/Linear Ft.
- 1100
Materials
- Acrylic
- Aluminum
- Steel
Mounting
- Cable
- Pendant
- Surface
- Wall
Ratings & Compliance
- Assembled in America
- Damp
- Interior
Voltage
- 120 V
- 277 V
Warranty
- 5 yr
Watts / Linear Ft.
- 3
- 4
- 5
- 5
- 6
- 7
- 8
- 9
- 10
- 10
Technology
- Color Rendering
- Comfort
- Control
- Power over Ethernet
- Tunable White
